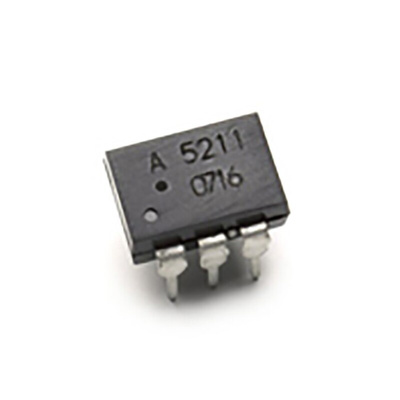

ASSR-5211-001E, Broadcom Solid State Relay, 0.2 A Load, PCB Mount, 600 V Load, 1.7 V Control, Реле

High Current, 1 Form A, Solid State Relay (MOSFET) (600V/0.2A/16Ω)

The ASSR-5211 Solid State Relay (SSR) is specifically designed for high current applications, commonly found in the industrial equipments.The relay is a solid-state replacement for single-pole, normally-open, (1 Form A) electromechanical relays.
The ASSR-5211 consists of an AlGaAs infrared light-emitting diode (LED) input stage optically coupled to a high-voltage output detector circuit. The detector consists of a high-speed photovoltaic diode array and driver circuitry to switch on/off two discrete high voltage MOSFETs. The relay turns on (contact closes) with a minimum input current of 3mA through the input LED. The relay turns off (contact opens) with an input voltage of 0.8V or less.
The ASSR-5211 connection A, as shown in the schematic, allows the relay to switch either ac or dc loads. The connection B, with its advantages of reduced on-resistance and higher output current, allows the relays to switch dc loads only.
The electrical and switching characteristics are specified over the temperature range of -40°C to +85°C.

ASSR-5211, High Current, 1 Form A, Solid State Relay (MOSFET), 600V/0.2A/16Ohm)

Features

• Compact Solid-State Bi-directional Signal Switch

• Single Channel Normally-off

• Single-Pole-Single-Throw (SPST) Relay

• 600V Output Withstand Voltage

• 0.2A or 0.4A Current Rating

• Low On-Resistance: 4Ω Typical for DC-only, 16Ω Typical for AC/DC

• High Speed Switching: 0.7ms (Ton), 0.07ms (Toff) Typical

• High Transient Immunity: >1kV/μs

• High Input-to-Output Insulation Voltage (Safety and Regulatory Approvals)

Applications

• Industrial Controls

• Factory Automation

• Data Acquisition

• Measuring Instrument

• Medical System

• Security System

• EMR / Reed Relay Replacement

Optocouplers, Avago Technologies

ASSR-5211 High Current, 1 Form A, Solid State Relay (MOSFET) Data Sheet
