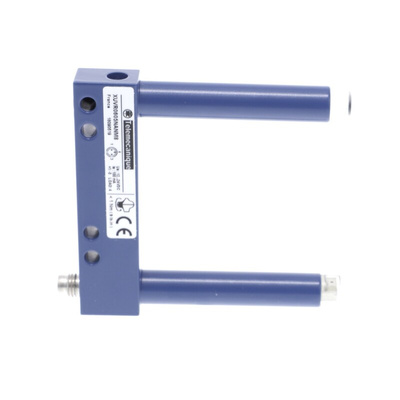

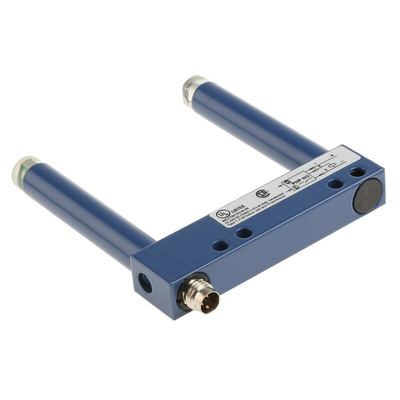

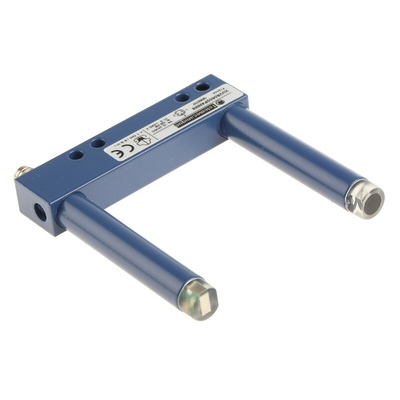

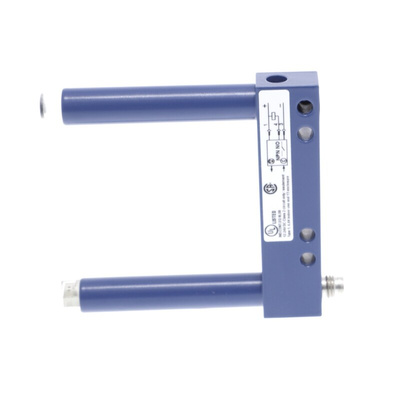

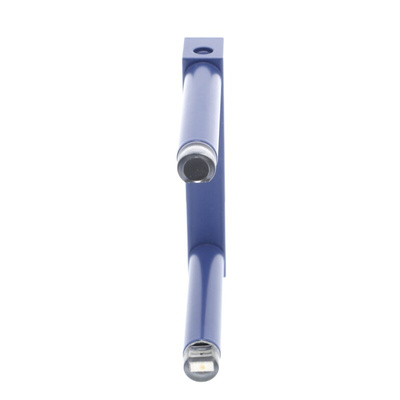

XUVR0605PANM8, Telemecanique Sensors Through Beam Photoelectric Sensor, Fork Sensor, 50 mm Detection Range, Фотоэлектрический датчик

Photoelectric Fork Sensors

Frame or fork style sensors which can detect the position or the passage of small parts, marks on transparent material, label presence and material edges. A robust and cost efficient alternative to fibre optics and ultra-miniature through-beam solutions.

Robust painted aluminium casing
Visible red light beam simplifies set-up
M8 threaded output connection - lead not supplied
LED output indication
Accurate - smallest detected object 0.6mm
High degree of protection (IP65 and IP67)
Suitable for packaging machines, conveyors and labelling machines

Approvals

CE, UL, CSA

Telemecanique Sensors Photoelectric Sensor, Through-Beam Detection Type, 50mm Nominal Sensing Distance - XU Series - XUVR0605PANM8

Keep a keen eye on the position of your workpieces with this three-wire photoelectric sensor from Telemecanique Sensors. It's a fork-style unit designed to detect small objects in a narrow path of 50 (W) x 60mm (D) by beaming infrared light from its transmitter to its receiver. Humid conditions are no trouble for this product thanks to its corrosion-resistant painted aluminium casing. With a low current rating of less than 20mA, you can rest easy knowing it's an energy-saving component.

Features & Benefits

• Yellow LED display lets you monitor the status of your setup at a glance
• Tips the scales at just 190g, so doesn't put strain on the mounting surface
• -10°C to +60°C operating temperature range indicates that it can hold up in tougher environments
• IP67 rating shows it's dust-proof and waterproof up to a depth of 1m

Applications

• Manufacturing sector
• Food and drink industries
• Conveyor systems

What connectors does this unit come with?

For wide compatibility, this product has a standard 3-pin male M8 threaded connector to make an electrical connection.

Contents
type":"Contents",

50 x 60 mm
