4624N, ebm-papst 4000 N Series Axial Fan, 24 V ac, AC Operation, 148m³/h, 19W, 950mA Max, 119 x 119 x 38mm, Вентилятор

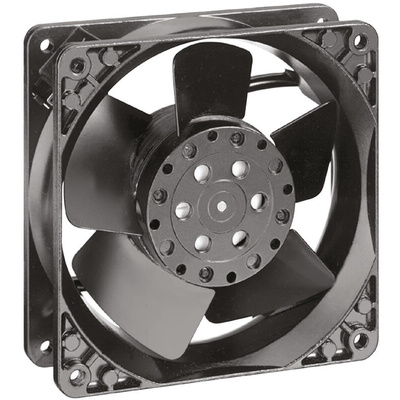

ebm-papst AC Axial Fan

The ebm-papst AC axial fan is a high-tech cooling solution. It is available in the size of 119mm x 119mm x 38mm and supply voltage of 24VAC. The fan has 3100rpm motor speed. It has an extended ball bearing life that ensures fault-free use for a significant period of time (32,500 hours at 40°C). The ebm-papst AC fans provide a flexible and dependable cooling solution for applications that lets you mount it in any axial position. The fan has a power consumption rating of 18W.

Features and Benefits

Airflow of
148m³/h
Fan motor integrated into the impeller hub to form a compact fan unit
Air intake via struts
External rotor shaded pole motor
Expertly designed for maximum efficiency and performance
Aerodynamic blades for low noise level and increased efficiency
Choice of bearing types including PAPST sintec sleeve bearings for low noise and low shock sensitivity
Flanged housings with mounting holes for installation into equipment
Die cast alloy housing for a robust construction
Protection from overload by impedance protection

Applications

Catering
Domestic appliances
Enclosures
Fans, motors, and pumps
Heating and ventilation
Industrial drives
Instruments
Lighting
Machines and industrial
Medical
Power supplies
Printing
Telecom
UV systems
IP20 rating

Certifications

UL approved
CSA
VDE

4624N Datasheet
