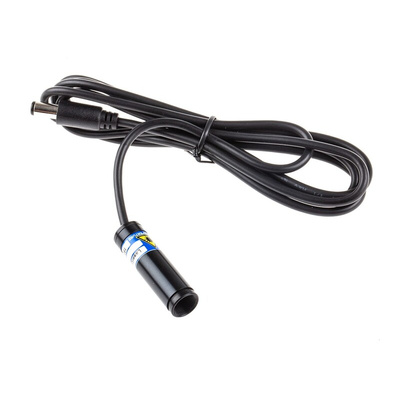

Global Laser LaserLyte-Flex-635-5 Laser Module, 635nm 5mW, Continuous Wave Dot pattern, Лазерный модуль

Laserlyte Flex

This laser is a brilliant a unique laser. From ’Global Laser’, it boasts a brilliant interchangeable laser system. The system has a range of projections which convert the base dot laser into a line, cross or a line with a dot. It is also features a ’plug-and-play’ feature when purchased with the power supply. (697-3591). The laser’s colour is a red for easy visibility.

The unique laser can be used in a variety of applications. You can use it on your home machinery for precise accuracy, production lines for alignment, cutting guidance, straight edge guidance, positing and screen printing.

Note

110 – 240Vdc Power Supply:697-3591

Warning

These laser diode modules are OEM devices and conform to the emission criteria of BS (EN) 60825. It is recommended that this standard and the Data Sheet are read before these lasers are used. Serious eye damage may result if any laser of 1mW or above is pointed directly at the eye.

Features and Benefits:

•\tPowerful red laser for great viability in any task
•\t15 x 37mm (Without any optics or attachments)
•\tUser adjustable focus
•\tHoused in a black anodised aluminium body for prolonged life and brilliant quality.
•\t6mm to infinity focus range
•\t1.5m cable length to allow for neat and safe cable management
•\tLaser class – 3R
•\t5mW (Milliwatt) Laser
•\t635nm wavelength

Need another variation?

127-1571 – Red continuous wave laser, 10mW – Class 3B.
127-1572 – Red continuous wave laser, 1mW – Class 2.

Laser Modules, Global Laser

LaserLyte-Flex_Datasheet_EN

LaserLyte-Flex_Red_Userguide_EN
