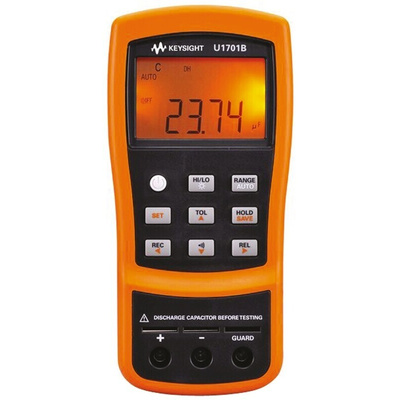

Keysight Technologies U1701B Handheld LCR Meter 199.99mF With RS Calibration, LCR-метр

Keysight U1701A & U1701B Handheld Capacitance Meters

U1701A & U1701B are ergonomic handheld capacitance LCR meters, user friendly with overmold and built and tested to be robust for harsh industrial environments. Efficient capacitor sorting with no need to set and reset standard reference, the meter features up to 25 sets of high/low limits that can be stored and chosen through compare mode.
Featuring a dual display 11,000 counts resolution, secondary display and backlight which provides ease of viewing in subdued lighting. Also included is a quick start guide, product reference CD with user's & service guide and data logging software, certificate of calibration, alligator clip leads, 9V alkaline battery.

Note

One year calibration cycle recommended by manufacturer

Note

One year calibration cycle recommended by manufacturer

Supplied with

quick start guide, product reference CD with user's & service guide and data logging software, certificate of calibration, alligator clip leads, 9V alkaline battery

Keysight Technologies Capacitance Meter, LCD Display, 9V Battery - U1700 Series - U1701B

Check the performance of your capacitors with this meter from Keysight Technologies. Thanks to its rugged over-mould housing, you can put it to the test in demanding environments. The maximum capacitance measurement of 199.99mF enables you to charge ahead with electronics assembly and repair tasks. You can adjust high and low limits or switch between tolerance and relative modes at the touch of a button, making it a handy choice. Thanks to the quick-start guide, you'll have the device up and running in a jiffy.

• Light weight of 320g for ease of handling
• Data hold button means you won't miss measurements
• Guard terminal keeps the noise down when you're using tweezers

Applications

• Electronics assembly lines
• Repair workshops
• Electrical engineers
• Test and research laboratories

How is this capacitance meter powered?

This capacitance meter is powered by a 9V battery with a life of 80 hours to keep you switched on through long shifts. A low battery indicator means it won't turn off unexpectedly. If you'd like the option to use mains power, simply plug it in with an adapter (711-8050).

Agilent U1701A/U1701B Handheld Capacitance Meter Data Sheet
