1747-BA, Allen Bradley 1747 Series PLC Power Supply for Use with RSLogix 500, Блок питания

Allen Bradley 1747-BA Lithium Battery PLC Power Supply for RSLogix 500, SLC 500

Provide greater memory support for RSLogix 500 software and SLC 500 with this lithium battery by Allen Bradley.

Lithium batteries are primary (not rechargeable) cells which can be used as replaceable backup power for RAM with the SLC 500, to ensure that programmed software logic is not lost in the event of power failure to the PLC system.

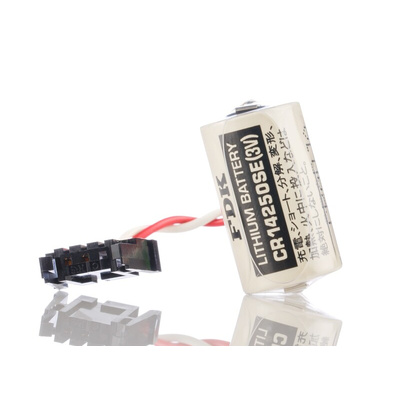

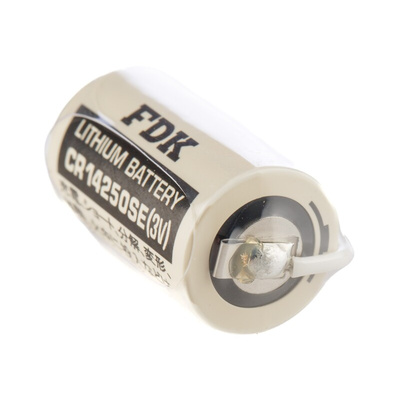

This battery is supplied by Sanyo (Sanyo Energy Corp.), Sanyo part number CR14250SE-TC23-1, and is a Cylindrical SE Type Cell. It has a nominal voltage of 3V and a nominal capacity of 850mAh. The maximum discharge current is 7.0mA.

Diameter: 14.5 mm (0.57 in)
Height : 25.0 mm (0.98 in)
Weight: 9 g (0.32 oz)

Approximate time of discharge (3.0 V to 2.0 V) @ 23° C (73° F):
High-rate (6.3 mA): 85 hours
Mid-rate (505 uA): 70 days
Low-rate (10 uA): 10 years

Features and Benefits:

• Operating temperature ranges between -40°C and 85°C
• Shelf life of 10 years with low self-discharge
• Provides reliable backup power for RAM with RSLogix software in the SLC 500 system, preventing data loss

Allen Bradley are industry leaders in PLC systems and manufacture a range of versatile, high-quality PLC components that you can use to construct a control system perfectly suited for your application requirements.

Applications:

Industrial automation
Robotics
Automobile industry

Certifications:

ANSI/ESD S20.20:2014
BSEN 61340-5-1:2007

Storage:

This battery should be stored in a dry, well-ventilated and cool environment with 20…25 °C (68…77 °F) temperatures and 40…60% humidity. This temperature and humidity of the storage area should be regularly monitored. It should not be stored near a source of heat, flammable materials, or in direct sunshine and must be kept away from water, rain, snow, frost or dew condensation. Do not store batteries longer than 10 years. Do not store used batteries longer than 3 months before disposal.

Handling:

Always install the batteries correctly as per instruction. Do not short-circuit, disassemble, deform, heat, incinerate, or attempt to re-charge. Do not pile up or mingle batteries with each other. Do not place battery on metal case, metal plate or antistatic material. In case of multi cell application, replace all batteries to new at once when replacing used batteries.

Disposal Method:

Dispose in accordance with appropriate regulations. Open cells should be treated as hazardous waste. Do not dispose of in a fire.

Guidelines for Handling Lithium Batteries Installation Instructions

Datasheet

Contains SVHC - 1,2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) - CAS No. 110-71-4

Guidelines for Handling Lithium Batteries Technical Data
