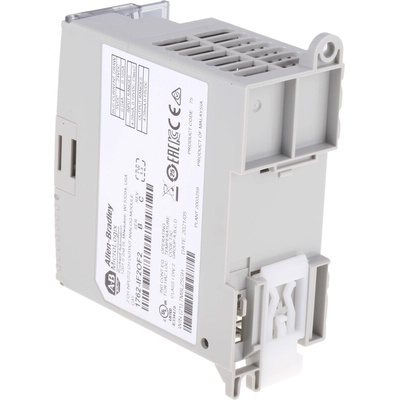

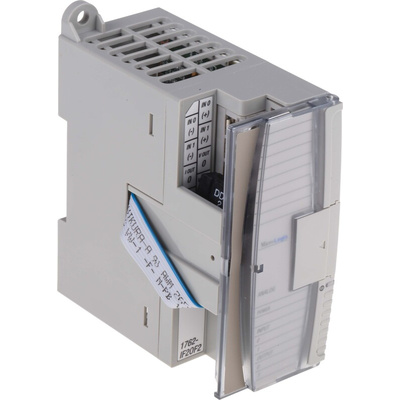

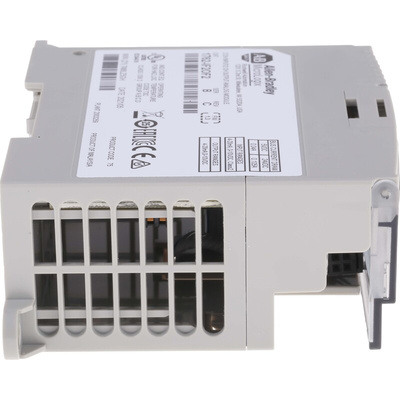

1762-IF20F2, Allen Bradley 1762 Series PLC I/O Module for Use with MicroLogix 1200 Series, Analogue, Differential, Analogue, Модуль

Analogue I/O Modules

Voltage or Current inputs
Dimensions: H 90 x W 40 x D 87mm

Note

Installations subject to high vibration should be panel mounted (as opposed to DIN rail mounted). A 50mm space should be left on all sides around units to provide adequate ventilation.

Allen Bradley PLC I/O Module For Use With MicroLogix 1200 Series, 4 to 20mA - 1769-IF20F2

Use this I/O (input/output) module from Rockwell Automation's Allen Bradley range to enhance the capacity of your MicroLogix 1200 series PLC (programmable logic controller). The PLC monitors and transfers commands to machinery and electrical devices in industrial automation settings. This module is designed to assist in the control of analogue machinery. It has two inputs and two outputs so you can connect it to a PLC and a secondary device, such as a data processor. Common applications include food and drink production, packaging conveyors and the pharmaceuticals industry.

Features and Benefits

• Operating temperature range of -20°C to +65°C to withstand demanding industrial environments• Supports output currents of 4mA to 20mA for versatility• Suitable for high-vibration environments, thanks to DIN rail or panel-mounting options

Standards and Certifications

• UL (Underwriters' Laboratories)• CE (Conformité Européenne)• ACMA (Australian Communications and Media Authority)• HazLoc (Hazardous Locations)• EN (European Norm)

What size is this I/O module?

IP20 rated
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

This module has a 90mm height, 40mm width and 87mm diameter. This means it's easy to handle and fits neatly with your MicroLogix 1200 series PLC.

Micrologix programmable controllers Selection Guide Data Sheet

1762-IF20F2 Installation Instructions

MicroLogix 1200 User Manual
