1762-IQ16, Allen Bradley PLC I/O Module for Use with MicroLogix 1100 Series, MicroLogix 1200 Series, MicroLogix 1400 Series,, Модуль

Digital I/O Modules

Up to 6 expansion modules may be added (dependent on power supply loading)
Dimensions: H 90 x W 40 x D 87mm

Note

Installations subject to high vibration should be panel mounted (as opposed to DIN rail mounted). A 50mm space should be left on all sides around units to provide adequate ventilation.

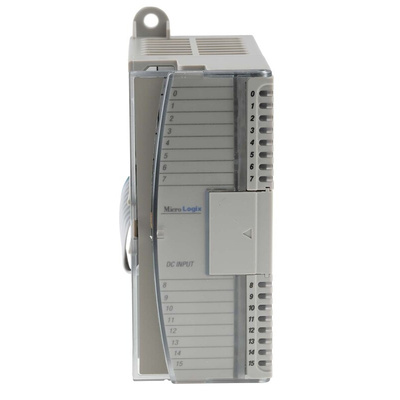

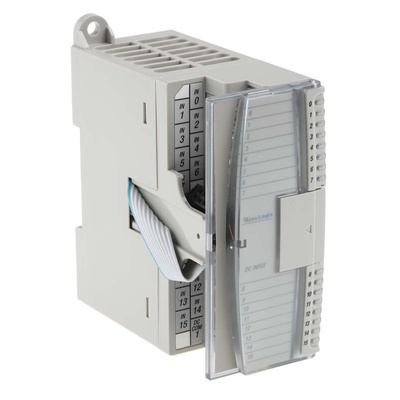

Allen Bradley Digital Expansion Module

The Allen Bradley digital expansion module has 16 digital channel inputs. Each I/O module includes a built-in removable terminal block with finger-safe cover for connecting I/O sensors and actuators. This module is used where an application requires more I/O than the built-in I/O provided by the controller. It is compatible with MicroLogix 1100, MicroLogix 1200, and MicroLogix 1400 controllers.

Features and Benefits

Devices can be connected in sink as well as source configurations
Inputs can be differential or single ended
Supply voltage is 24VDC
Ambient operating temperature ranges from 0°C and 55°C
Input current is 12mA

Applications

Industrial automation
Robotics
Automobile industry

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Micrologix programmable controllers Selection Guide Data Sheet

Instruction Sheet - 1762-IQ16

User Manual - MicroLogix 1200 Programmable Controllers
