1762-OW16, Allen Bradley PLC I/O Module for Use with MicroLogix 1100 Series, MicroLogix 1200 Series, MicroLogix 1400 Series,, Модуль

Digital I/O Modules

Up to 6 expansion modules may be added (dependent on power supply loading)
Dimensions: H 90 x W 40 x D 87mm

Note

Installations subject to high vibration should be panel mounted (as opposed to DIN rail mounted). A 50mm space should be left on all sides around units to provide adequate ventilation.

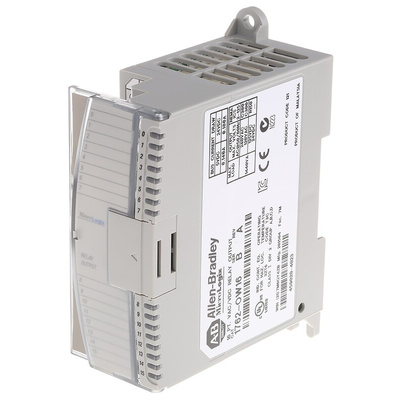

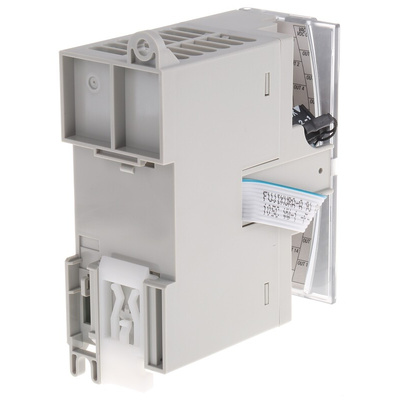

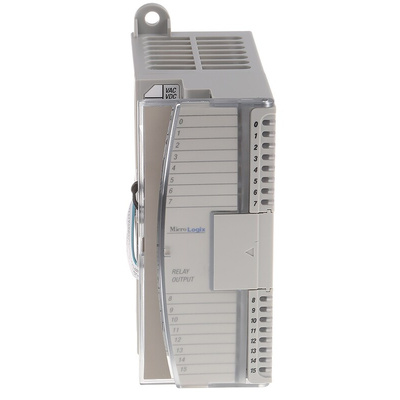

Allen Bradley I/O Module For Use With MicroLogix 1100, 1200, 1400 Series, 125V DC, 265V AC - 1762-OW16

Enhance the capability of a MicroLogix PLC (programmable logic controller) with this I/O (input/output) expansion module from Rockwell Automation's Allen Bradley range. The small field unit provides 16 digital channel relay outputs for maximum usage and is compatible with MicroLogix 1100, 1200 and 1400 controllers. The compact design of the unit is space-saving so you get maximum packing efficiency on your DIN rail. It can also be panel mounted, letting you choose the option that best suits your system. As the module doesn't need long cable runs, the risk of signal conditioning is significantly reduced.

Features and Benefits

• Wide operating temperature range of 0°C to +55°C so suitable for varied working conditions
• Small dimensions of 90 (H) x 40.4 (W) x 87mm (D)
• IP20 (ingress protection) rated enclosure is protected from touch and large dirt particles

Standards and Certifications

• ANSI/ESD S20.20:2014 (International Safety Equipment Association)
• BS EN 61340-5-1:2007 (British and European Standard Specifications)

Where can I use this device?

IP20 rated
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

This I/O module is suitable for use in clean and dry industrial environments and with circuits where transient voltages are controlled and don't exceed the impulse voltage capability of the product’s insulation. Common applications include robotics and the automobile industry.
