1762-IF4, Allen Bradley 1762 Series PLC I/O Module for Use with MicroLogix 1100 Series, MicroLogix 1200 Series, MicroLogix 1400, Модуль

Analogue I/O Modules

Voltage or Current inputs
Dimensions: H 90 x W 40 x D 87mm

Note

Installations subject to high vibration should be panel mounted (as opposed to DIN rail mounted). A 50mm space should be left on all sides around units to provide adequate ventilation.

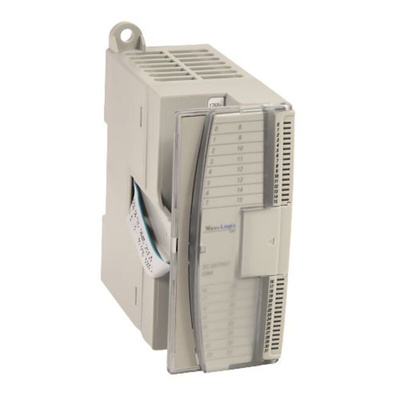

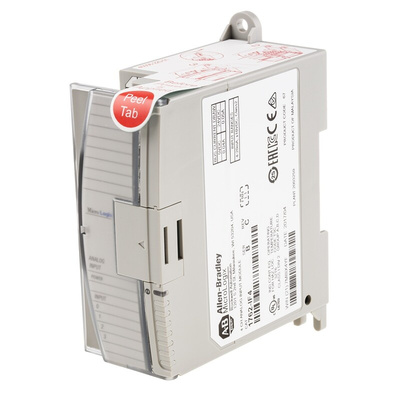

Allen Bradley Analogue Input Module For Use With MicroLogix 1100, 1200, 1400 Series, 4 Channels - 1762-IF4

This analogue input module from Rockwell Automation's Allen Bradley range is designed to monitor machine operating conditions. It also transfers signals to a programmable logic controller (PLC) for easy diagnosis. The unit features four channels that enable a wide range of voltage and current monitoring functions from a single unit. Thanks to its compact dimensions of 90mm (height), 40mm (width) and 87mm (depth), this module fits easily in busy panels to maximise space. Use it to manage automated assembly lines in industrial environments.

Features & Benefits

• Wide operating temperature range between 0°C and +55°C for use in diverse environments
• Differential or single-ended inputs for added versatility
• Repeatability rate of ±0.1% ensures accurate results in multiple readings
• LED (light-emitting diode) signal to quickly notify you if power is applied
• High output current of ±21mA for use with heavy-duty equipment

Standards and Certifications

• ANSI/ESD (American National Standards Institute)
• BS (British Standard)

What controllers can I use this module with?

This unit is compatible with controllers from the MicroLogix 1100, MicroLogix 1200 and MicroLogix 1400 ranges, making it a versatile choice.

Micrologix programmable controllers Selection Guide Data Sheet

Installation Sheet - 1762-IF4

User Manual - 1762-IF4
