1769-PA4, Allen Bradley 1769 Series PLC Power Supply for Use with Compact I/O Module, Блок питания

Power Supply Units

Used to power CompactLogix controller and I/O modules
May also power additional I/O banks in MicroLogix 1500 (series A, revision C and FRN 3 or higher) systems
Each CompactLogix I/O bank requires a power supply
Up to 8 modules may be fitted each side of PSU depending on loading & individual module restrictions

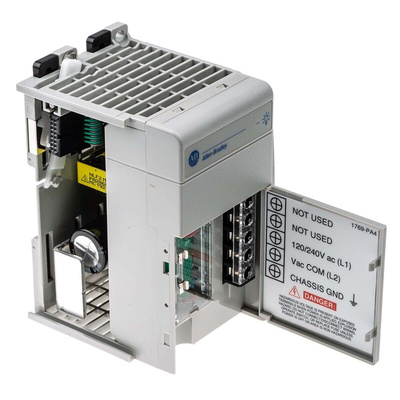

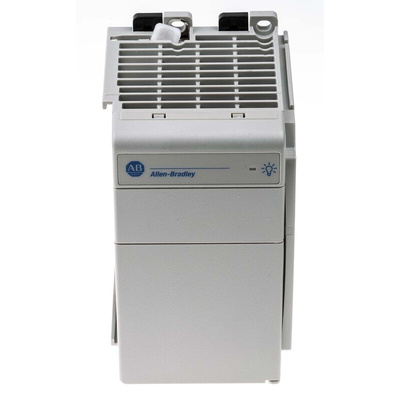

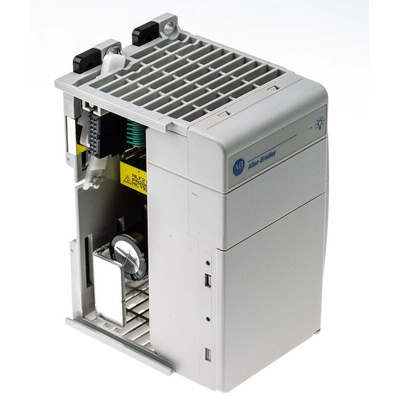

Allen Bradley PLC Power Supply For Use With Compact I/O Module, 4A - 1769-PA4

Provide your 1769 series PLC (programmable logic controller) with the electricity it needs to run using this power supply from Rockwell Automation's Allen Bradley range. A PLC is a simple-to-use computer for machine automation commands and this power supply protects your PLC memory from damage. For added versatility, it's compatible with I/O (input/output) banks and modules in other series. The supply has room for connecting up to eight modules on either side, so you can power multi-faceted systems.

Features and Benefits

• Wide operating temperature range of 0°C to +60°C for use in demanding industrial environments• 4A output current suits low-voltage PLC operations• Compact unit with dimensions of 70 (W) x 118 (H) x 87mm (D) to minimise strain on your setup• Mounts to a DIN rail for quick and secure installation

Standards and Certifications

• EN (European Norm)• IEC (International Electrotechnical Commission)• UL (Underwriters' Laboratories)• ACMA (Australian Communications and Media Authority)• HazLoc (Hazardous Locations)

What's the voltage range of this PLC power supply?

UL certified
CE
C-Tick Certified

This PLC power supply has an input voltage range of 120 to 220V AC (alternating current) with a corresponding power consumption of 200 and 240VA (volt-ampere).

Datasheet

Installation Instructions 1769-PA4

CompactLogix System Selection Guide

1769 Compact I/O Modules Specifications

Line Drawing - 1769-PA4
