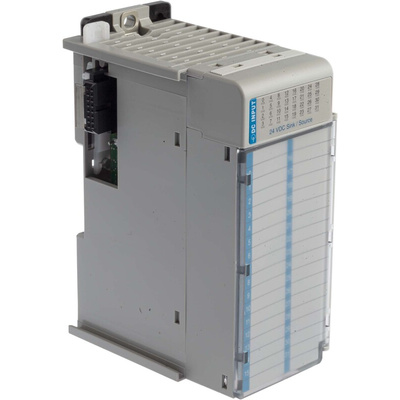

1769-IQ32, Allen Bradley 1769 Series PLC I/O Module for Use with MicroLogix 1500 Series, Digital, Модуль

Allen Bradley Digital Input Expansion Modules

Increase control capabilities for your PLC system with the Digital Input Expansion Modules from Allen Bradley. These compact, affordable modules are designed to expand your PLC system and improve the efficiency and reliability of your automated machine processes.

Features and Benefits:

• Choice of module types for application flexibility
• LED indications of input status for fast troubleshooting
• Opto-isolation between inputs and bus and logic circuitry
• 24Vdc input modules configurable sink or source
• Terminal identification inside cover

The 1769-IQ16 is a 16 Point 24 VDC Sinking/Sourcing Input Module which can be used for expansion I/O in a MicroLogix 1500 controller system. It has an operating temperature range of 0°C to 60 °C (32°F to 140 °F) and can be DIN rail or panel mounted for your convenience. The module mechanically locks to other modules with a secure tongue-and-groove design, and has an integrated communication bus that is connected from module to module by a movable bus connector. It includes an embedded removable terminal block with finger-safe cover for connections to I/O sensors and actuators.

What are I/O modules used for?

Input/Output modules (I/O modules) communicate signals and information to a computer processor and transmit responses from the processor to external devices, acting as a mediator. They can be used in Programmable Logic Controller (PLC) systems to automate machine processes. These control systems are often used in industrial automation, for example to monitor and control machinery in production lines. Inputs can be triggered via things like switches, sensors, and buttons while outputs send instructions to devices, such as motor starts and relays. Allen Bradley PLC systems provide dependable and flexible control capabilities to give you seamless performance.
