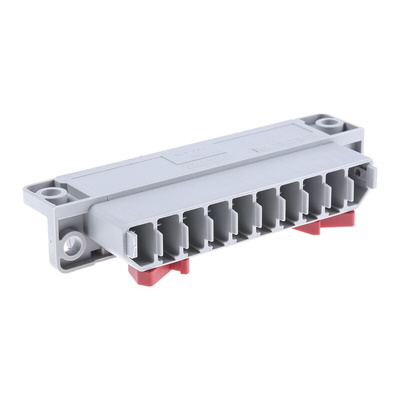

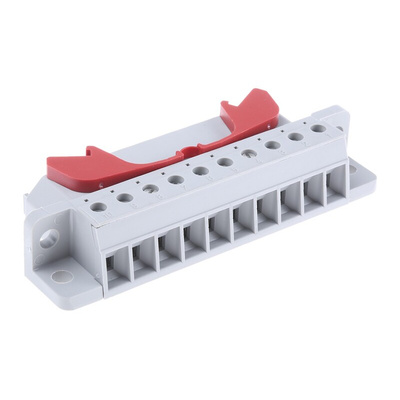

1600014, Phoenix Contact HCC Series HCC 4-M Non-Fused Terminal Block, 10-Way, 25A, 24 → 12 AWG Wire, Screw Down

HCC Screw Connection Terminal Blocks

Features and benefits:

• High current-carrying capacity for the requirements of connectors which can be freely fitted in the construction of controllers and switchgear
• Screw connection for stranded conductors up to 4 mm², optional socket also for 0.5 - 2.5 mm² crimp connection
• Touch-proof even when unplugged
• Strain relief for plug and socket components
• 2 catches automatically ensure against unintentional loosening when plugged in
• Coding is possible without loss of polarity by inserting coding profiles into the plug and socket
• DIN Rail mountable on NS 32 and NS 35 using the foot element
• RoHS compliant

Accesories:

• 698-8063, plug, 10-way, screw connection, grey
• 698-8066, socket, 10-way, screw connection, grey
• 648-9982, coding profile, prevents similar connectors from being mixed up
• 698-8060, foot element, M4 x 10 screw for connection with the socket part, for assembly on NS 32 and NS 35 DIN Rail

Standards

IEC 61984, EN 60079-7.

Approvals

UL, CUL, CSA.

Phoenix Contact 10-Way Non-Fused Terminal Block, Screw-Down Terminals, Nylon, 24 to 12 AWG - HCC 4-M - 1600014

This 10-way terminal block from Phoenix Contact is an effective solution if you need to connect several wires together in your electrical systems. A high current rating of 25 A makes it suitable for demanding applications such as the construction of connectors for switchgear and controllers.
This product is designed for simple screw termination. You can mount it simply onto your DINrail with a simple clip-on action. This lets you install the terminal block quickly and remove it easily of necessary. Two catches give it a tight hold for improved reliability.
This terminal block also has a good level of strain relief, so it's sturdy enough for you to use it as a component in plugs and sockets. It's ideal for prototyping and industrial manufacturing applications, as well as in electronic equipment

• Panel feed-through terminal block
• Not fused
• Male gender
• Nylon material
• Screw-down termination method
• Voltage rating of 500 V
• Wire size range of 24 to 12 American Wire Gauge (AWG)

Plastic Two Part

Terminal blocks with a plug/socket arrangement which allow the block to be separated into two halves, isolating the plug strip without the need to remove each connection individually.
