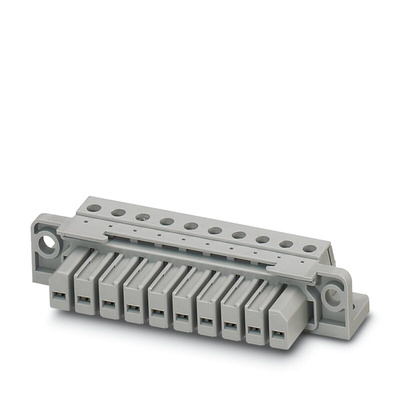

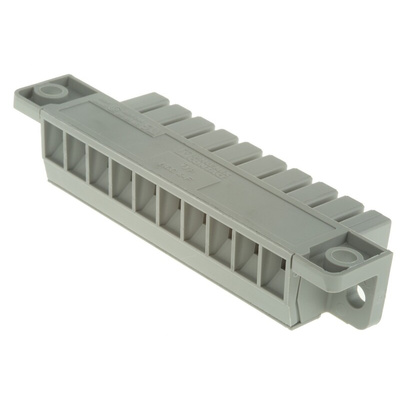

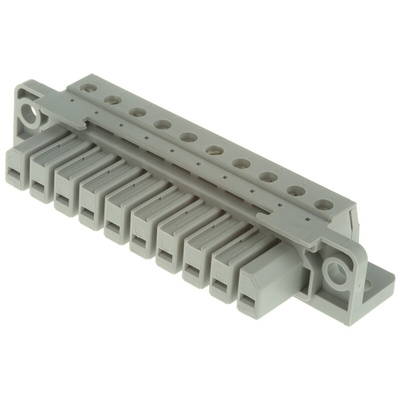

1600001, Phoenix Contact HCC Series HCC 4-F Non-Fused Terminal Block, 10-Way, 25A, 24 → 12 AWG Wire, Screw Down

Phoenix Contact Non-Fused Terminal Block, 500V Voltage Rating, 83mm Drill-Hole Spacing - HCC 4-F - 1600001

Looking for a space-saving connector that handles up to 10 conductors? Pick this non-fused terminal block from Phoenix Contact. It has a single-row design and compact dimensions of 92 (W) x 18 (D) x 31.5mm (H), meaning it fits neatly into busy setups where there's not much spare room.
The unit's made of nylon material, so you can trust it to resist impact and abrasion. Screw terminals make it a cinch to link up wires and achieve connections that stand up to vibration. As it accommodates conductors in a size range from 24 to 12AWG, this is a versatile option. You can depend on it in harsh environments, thanks to an operating temperature range between -5°C and +70°C. A low weight of 43.48g means it's easy to handle and light enough to mount onto thin-gauge material.

Features & Benefits

• 7.62mm pitch for easy accessibility when adding wires
• Inbuilt 6kV surge protection prevents voltage spikes from damaging your equipment
• Flame-retardant UL 94-V0 material means burning stops in less than a minute to prevent the spread of fire

Plastic Two Part

Terminal blocks with a plug/socket arrangement which allow the block to be separated into two halves, isolating the plug strip without the need to remove each connection individually.

1600001 Datasheet

1600001 Instructions
