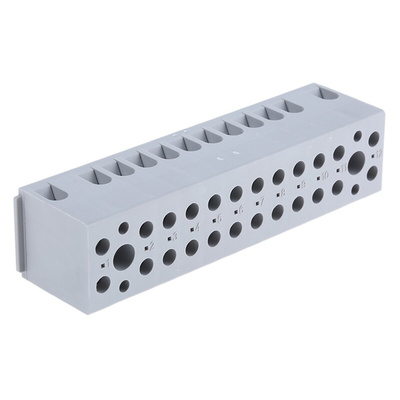

2716127, Phoenix Contact UK Series G 5/12 Non-Fused Terminal Block, 12-Way, 32A, 24 → 12 AWG Wire, Screw Down Termination

Phoenix Contact Non-Fused Terminal Block, 500V Voltage Rating, M3 Screw Thread - G 5/12 - 2716127

Create seamless links between your wires with this non-fused terminal block from Phoenix Contact. As it's fuse-free, it's suitable for setups where overcurrent protection isn't necessary. Robust PA housing resists corrosion and impacts to ensure long-lasting performance. Fastening the screws using between 0.6 and 0.8Nm of torque results in a secure and tight attachment that won't shake loose even when your equipment is subject to heavy vibrations. You can be sure this unit shrugs off power spikes, thanks to its rated surge voltage of 6kV.
The block accommodates wire sizes ranging from 24 to 12AWG, so it's a versatile option. With a voltage rating of 500V, it's ideal for use in low-voltage systems. You can install it without a DIN rail by screwing it directly to a flat mounting surface, so it's suitable for applications like routers and network panels.

Features & Benefits

• Screw terminal type for speedy installation with no need for specialist tools
• Current rating of 32A suits high-powered circuits
• Accepts rigid or flexible conductors as needed
• Low power dissipation of 1.02W means it's an energy-efficient choice

2716127 Datasheet

2716127 Instructions

Line Drawing - 2716127
