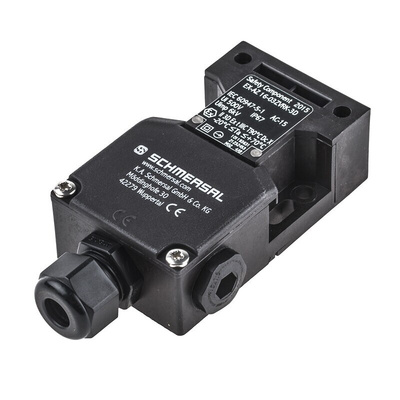

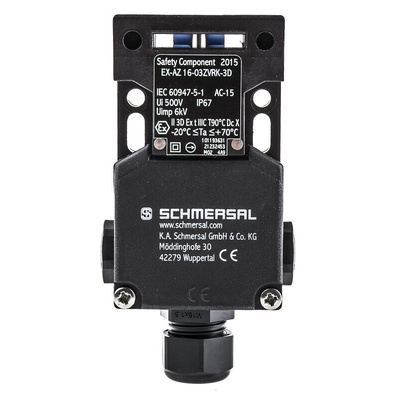

EX-AZ 16-03ZVRK-3D, Schmersal ATEX EX-AZ16 Safety Interlock Switch, 3NC/1NO, Keyed, Glass Fibre Reinforced Thermoplastic

AZ16, ATEX

Long life - up to 1 million mechanical operations
Double insulated
3 cable entries M20 x 1.5
Large wiring compartment
High level of contact reliability with low voltages and currents
Patented roller system - not sensitive to dirty conditions
Slotted holes for adjustment, circular holes for location

Note

Actuator not supplied and must be ordered separately

Standards

IEC 60947-5-1, IEC 61241-1, BG-GS-ET-15

Group and Category

II 3D
Ex tD A22 IP67 T90°C X

Schmersal Interlock Switch, 3NC, Screw Connection - EX-AZ16 Series - EX-AZ 16-03ZVRK-3D

Restrict access to dangerous equipment with this interlock switch from Schmersal. You can use it to cut power to a circuit when a protective gate is open, reducing the risk of injury and other hazards in your work environment. For durability and strength, the switch's housing is made from a glass-fibre-reinforced thermoplastic material that's impact-resistant, giving you a long-lasting product. Screw termination lets you mount the switch quickly and securely without the use of any specialised tools, making installation simple.

Features & Benefits

• Compact dimensions of 90 (length) x 52 (width) x 30mm (depth) for use in areas where space is limited
• Wide operating temperature range of -20°C to +70°C for use in both hot and cold environments
• Silver conducts for high conductivity and corrosion resistance, ensuring a reliable connection even in demanding conditions

Applications

• Metalworking industry
• Construction applications
• Industrial machinery

Is this switch water-resistant?

The switch has an IP67 (ingress protection) rating, which means it can withstand submersion in up to one metre of water for up to 30 minutes. This makes it safe for use in areas where occasional exposure to moisture is likely.

Interlock Switch

Datasheet

Instruction Sheet - EX-AZ 16-03ZVRK-3D
