103025833 HSK-K-EX-ACT M20X1,5 KB6-12MM, Schmersal Black Polyamide Cable Gland, PG13.5 Thread, IP68

AZM415, ATEX

Two switches in one enclosure
Problem free opening of stressed doors by means of bell-crank system
Robust design
Long life - up to 1 million mechanical operations
High holding force of 3500 N
Adjustable ball latch to 400 N
2 cable entries M20 x 1.5

Note

Actuator not supplied and must be purchased separately

Standards

IEC 60947-5-1, IEC 61241-1, BG-GS-ET-19

Group and Category

11 3D
Ex tD A22 IP67 T65°C X

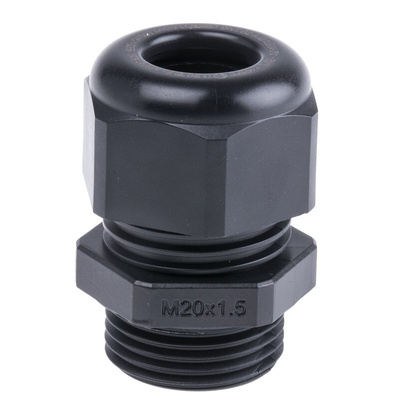

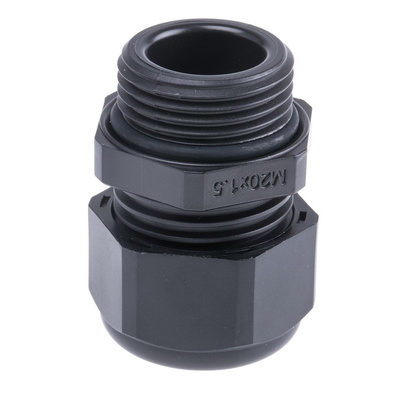

Schmersal Black Polyamide Cable Gland, IP68

The HSK-K-Ex-Active has been developed to meet the stringent requir ements of EN 60079-0 : 2012. The cable gland, made of special formulated fibre glass reinforced polyamide, combines all features of the established HSK-K-Ex series and the latest approvals according to ATEX and IECEx.
The HSK-K-Ex-Active has been designed for applications in electrical equipment, which require types of protection Ex e and Ex t according to the latest standards EN 60079-0, 60079-7 and 60079-31.

Features & Benefits

Zones: 1, 2, 20, 21, 22
Sizes: M 12 – M 63, NPT 3/8" – NPT 1 1/2"
Temperature Range: -20° C – 85° C (-4° F – 185° F)
EC-Type Examination Certificate: BVS 14 ATEX E 025 X
IECEx Certificate of Conformity: IECEx BVS 14.0020X
Marking:
II 2G Ex eb IIC Gb
II 1D Ex ta IIIC Da
According to the latest EN Standards:
EN 60079-0:2012 IEC 60079-0:2011
EN 60079-7:2007 IEC 60079-7:2015
EN 60079-31:2014 IEC 60079-31:2013
EN 60529

Note

- FKM and VMQ O-Ring upon request
- The shown inserts are samples, more inserts upon request

HSK-K-EX-ACT Datasheet
