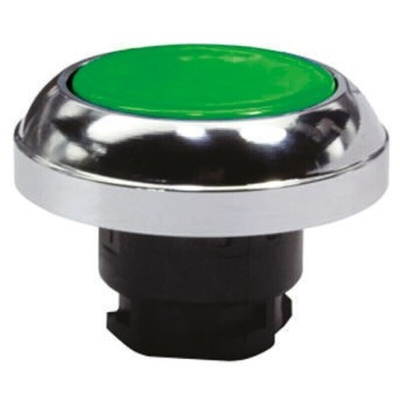

EX-RDT gn, Schmersal EX-RDT Series Green Push Button Head, 22mm Cutout, IP65, ATEX

Push Buttons, ATEX, RDT Series

IP 65 protection rating
Ø 22.3mm panel cut out
4 mm actuating stroke
7J maximum impact energy
1.5 N actuating force
1 x 10⁶ mechanical operations

Note

Contact block is not supplied and must be purchased separately

Standards

EN 60947-5-1, EN 60947-5-5, EN 60079-0, EN 60079-11

Group and Category

II 2GD
Ex e ib IIC T4 X
Ex tD A21 IP65 T110°C X

Schmersal Push Button Head, 22.3mm Cutout Diameter, Green Colour - EX-RDT gn

Activate your equipment with ease using this push button head from Schmersal. Its green colour makes it useful for start functions on industrial machinery. The durable aluminium front ring is resistant to impact and corrosion for reliable performance in heavy-duty applications. A light weight of just 20g means it will place minimal strain on your equipment. Thanks to its broad operating temperature range between -25°C and +70°C, it's suitable for use in demanding environments.

Features & Benefits

• IP65 rating indicates it's protected against dust and low-pressure water jets
• ATEX certified for safe use in potentially explosive environments
• Small actuating stroke of 4mm for sensitivity to activation

Applications

• Conveyor belts
• Construction equipment
• Mining industry
• Petrochemical plants

How long will this push button head last?

This unit has a long mechanical lifespan of 100,000 operations, so it will last a long time.

Is this push button head easy to mount?

Thanks to its built-in mounting flange and a compact cutout diameter of 22.3mm, you can easily fit this component into your existing control panel.

Schmersal ATEX Pushbuttons

Control devices and indicator lights Catalogue D-22 Ex-R

Datasheet - EX-RDT gn

Instruction Sheet - EX-RDT gn
