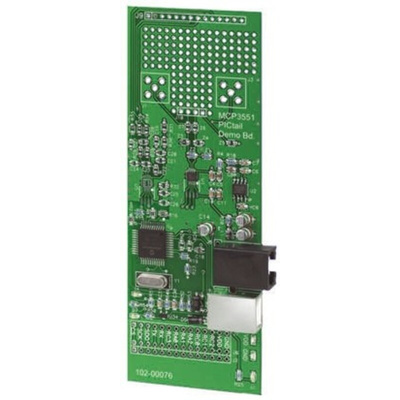

MCP3551 Demonstration Board
This board is designed to demonstrate the MCP3551 22-Bit Delta-Sigma Analog-to-Digital (ADC) Converter performance using DataView™ software installed on a PC. The demo board can be used with MPLAB ICD 2, PICkit™ 1 Flash Starter Kit, or PICkit™ 2 for developing demonstration/evaluation firmware. Optionally, a second installed MCP3551 can be used with an optional stimulus board (sold separately).,The board is designed to evaluate the MCP3551 with minimum Printed Circuit Board (PCB) noise. The PCB layout practices low-noise design to reduce the signal noise as much as possible in order to demonstrate the 22-Bit performance of the MCP3551.
Three precision potentiometers for demonstrating the capabilities of the MCP3551
On-board PIC18F4550 with USB for DataView™ communication
USB interface for connecting to a PC
Dataview™ software with easy-to-read format and data logging
Three headers/connectors for programming the MCU using PICkit™ 1, PICkit™ 2 or MPLAB ICD 2
Analogue to Digital Converters - Microchip
Техническая спецификацияMCP3551DM-PCTL MCP3551 Delta-Sigma ADC Demo Board Data Sheet
