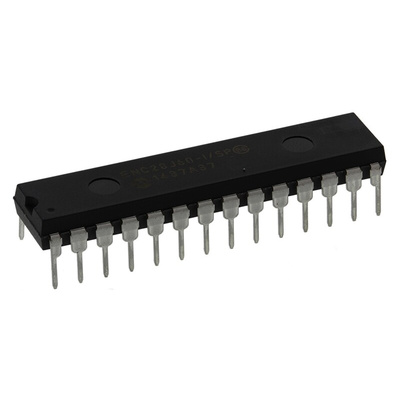

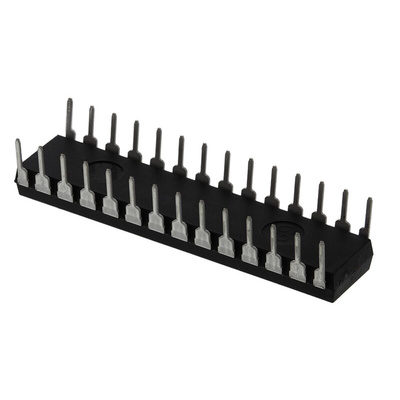

Microchip ENC28J60-I/SP, Ethernet Controller, 10Mbps, Serial-SPI, 3.3 V, 28-Pin SPDIP, Контроллер

6988981
Номер производителя: ENC28J60-I/SPПроизводитель: Microchip
Цена за шт.
1329.00 руб. (С НДС) *
Количество 25+ 100+
Цена 1290.00 руб. 1245.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

ECN28J60 10Base-T Ethernet Controllers

The ENC28J60 from Microchip is a great stand-alone ethernet controller. ENC28J60 is a 10BASE-T controller in a small form factor SOIC package with 28 pins. Featuring bandwidth of 10Mbps and onboard MAC & PHY, this controller is great for a range of applications. Microchips ethernet controllers also contain internal DMA for faster memory copying and a max speed of 25Mhz.

Features and Benefits:

  • 10BASE-T

  • Integrated MAC and PHY

  • 10Mbps bandwidth

  • IEEE 802.3 compatible

  • SPI interface with clock speeds up to 25Mhz

  • Supports MAC Unicast, Multicast and Broadcast packets

  • PHY loopback mode and programmable outputs

Applications:

  • Security

  • Instrumentation

  • Home control

  • Building automation

  • Industrial automation

  • VoIP

PHY and MAC?

PHY stand for 'Physical layer'. A physical layer is the first layer in an OSI stack. PHY layer will define physical and electrical characteristics of the network.

MAC is the abbreviation for 'Medium Access Control' and is the second layer in the OSI stack. The MAC is responsible for sending and receiving RF frames.

Daughter boards

  • AC164121 – 667-7899

  • AC164123 – 667-7902

Ethernet Communications - Microchip

Техническая спецификация
pdfDatasheet
Диапазон данных:
10 Mbps, 100 Mbps, 1000Mbps
Интерфейс подключения:
Serial-SPI
Количество контактов:
28
Поддерживаемый стандарт:
IEEE 802.3
Поддержка DMA:
Да
Рабочая температура - максимальная:
+85 °C
Рабочая температура - минимальная:
-40 °C
Размеры:
35.56 x 8.51 x 3.81мм
Режим связи:
Full Duplex, Half Duplex
Тип микросхемы:
Контроллер
Тип монтажа:
Сквозное отверстие
Тип упаковки:
SPDIP
Тип физической сети:
10BaseT
Типичное напряжение питания:
3.3 В
