0332 05-1, Lumberg 5 Pole Din Plug, DIN EN 60529, 5A, 250 V ac IP68, Male, Cable Mount, Разъем

0332 Cable Plugs

Threaded joint and solder terminals
360° shielded

Standards

IEC60130-9

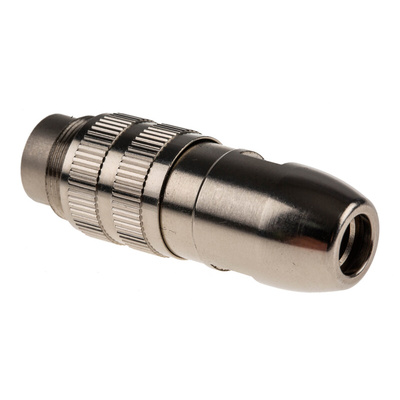

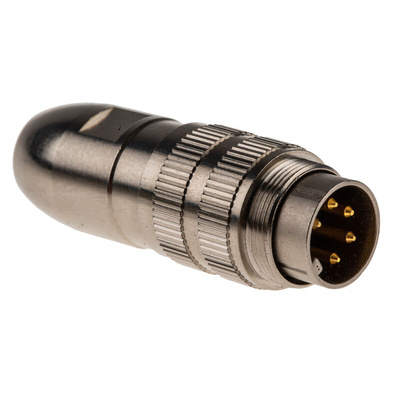

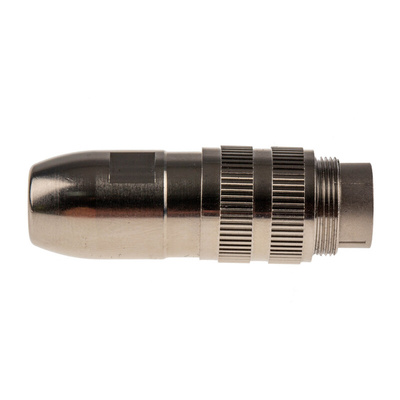

Lumberg DIN Plug

The Lumberg DIN plug is a 5-pole, male, cable mount connector with an electric rating of 250VAC and 5A. It is round in shape with pins arranged in a circular pattern within the connector. It has chassis, cable mount plugs and sockets up to 12-way. The body of connector is made from zinc alloy material with brass contacts and silver or gold finish. This circular connector socket is designed to be mounted on printed circuit boards and is also suitable for locking.
Lumberg Connectors Standard and SWUM™ - IP68
Lumberg Connectors Standard and SWUM™ - IP68 Chassis and cable mount plugs and sockets up to 12-way, with or without 360° shielding.

Features and Benefits

360° shielded design
Long bend protection
Operating temperature ranging between -40°C and 85°C
Screw on mating type
Solder terminals
Straight orientation with a threaded joint

Applications

Automation technology
Control engineering
Medical instrumentation
MIDI instruments
PC keyboards
Portable video devices and projectors

Certifications

IEC60130-9
IP68 rated

Lumberg Connectors Standard and SWUM™ - IP68

Lumberg Connectors Standard and SWUM™ - IP68 Chassis and cable mount plugs and sockets up to 12 way, with or without 360° shielding. Typical applications are control engineering, automation technology and medical instrumentation.

0332 Circular connectors with threaded joint Datasheet
