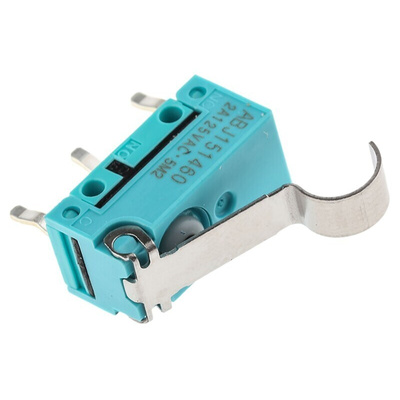

ABJ Type Ultra-miniature Turquoise Microswitch
The ABJ series ultra-miniature sealed switches offer an IP67 degree of protection for the pre-wired type and are available in many variations to suit your application's needs.
Panasonic Micro Switch
The Panasonic ABJ series ultra-miniature sealed is a single pole double throw (SPDT) microswitch. It operates by using a spring-loaded lever to open and close a set of internal contacts inside the unit. It has a simulated roller lever actuator. It requires a 65gf operating force to energize the spring. The operating current rating is 2A.
Features and Benefits
• Compact design and pc pin terminal
• High-performance
• Low cost
• Operating temperature ranges between -55°C and 85°C
• Silver and nickel alloy are used as contact material
• Through hole type mounting
• Up to 1,000,000 machine life cycles
• Voltage rating is 125VAC
Applications
• Automotive
• Used as a video jack
Certifications
• IP50 rating
• IP67 rating
