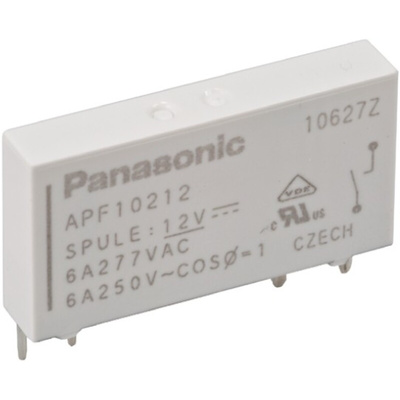

APF10212, Panasonic PCB Mount Power Relay, 12V dc Coil, 6A Switching Current, SPST, Реле

APF Series

These slim PCB mount power relays are only 5mm wide enabling high density mounting, a sealed construction allows automatic washing. Typical applications for these PCB power relays include programmable controllers, measuring equipment, timers, counters and temperature controllers, industrial and office equipment and house hold applicances for europe.

High switching capacity, supports 6A 250Vac (switching) and AC15-DC15
High breakdown voltage 4000V and 6000V Surge breakdown voltage
Sealed construction
Suitable applications include industrial and office equipment, timers, counters
Relay socket comes with LED indication and a hold down clip

Note

PCB relay socket available, see stk. no 7153542. The PF relay approvals do not apply to the PF relay socket

Standards

EN60335-1; EN61810-01

Approvals

UL; C-UL; VDE

PF RELAYS (APF) Data Sheet
