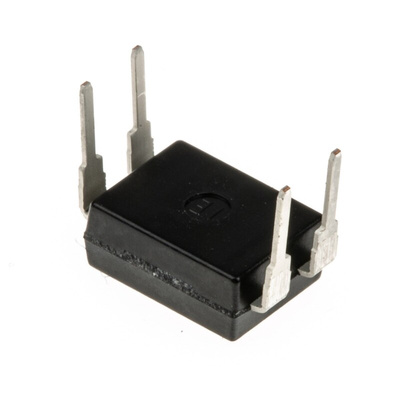

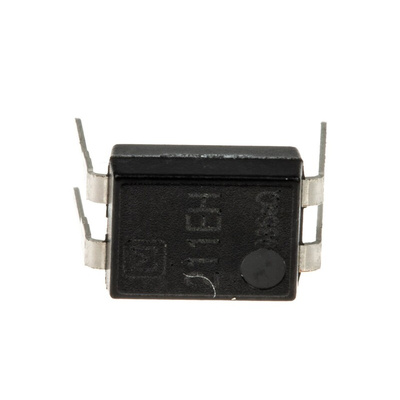

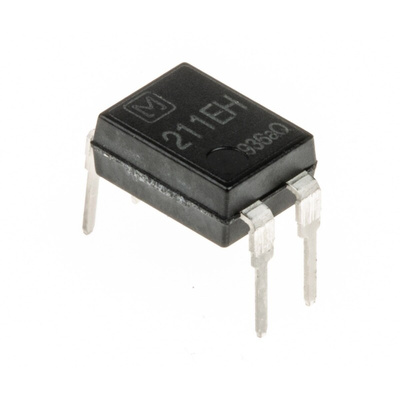

AQY211EH, Panasonic Solid State Relay, 1 A Load, PCB Mount, 30 V Load, 1.5 V Control, Реле

AQY Series

Controls low-level analog signals
Low-level off-state leakage current of max. 1 μA
Low on-resistance -AQY22 Series

Approvals

UL, C-UL (not for the AQY22 Series)

Panasonic SPNO SSR

The Panasonic 1A SPNO SSR PCB mount solid state relay is actuated with the help of a 30VDC coil and up to 1A DC/AC current through the coil to switch its positions. It is a high capacity power PhotoMos relay. PhotoMOS relays has extremely low closed-circuit offset voltage. This particular feature enables control of low analogue signals without distortion.

Features and Benefits

• Environmental friendly product
• Compact size four pin DIP
• Isolation voltage between the coil and contacts is 5KV
• Service temperature range between -40°C and 85°C
• High sensitivity
• Resistant to vibration and abrasion
• Low power consumption
• Offers excellent board space saving
• Efficiently controls low level analogue signals

Applications

• Used as a control device
• Modem
• Telecommunication equipment
• Security equipment
• Sensing equipment

Certifications

• UL certified
• C-UL certified
