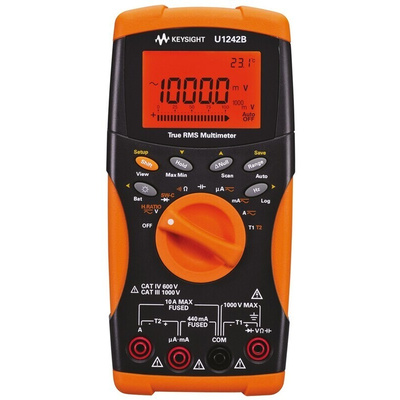

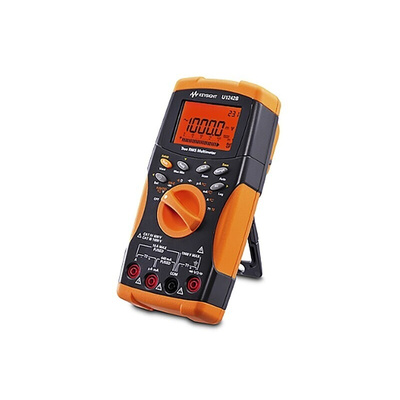

Keysight Technologies U1242B Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max, Мультиметр

Keysight U1242B Digital Multimeters

Keysight U1242B Series handheld digital multimeters are designed for users to perform tests confidently and efficiently over longer periods of time due to the precision, accuracy and repeatability. The U1242B digital multimeter is also designed to increase technicians or industrial test engineers production with the longer lasting battery life. The battery life will last up to 300 hours allowing you to work for longer periods of time without having to stop and battery change. The ergonomic shaped handheld digital multimeter has a large display and adjustable backlight that allows you to single handedly select measurements functions using the anti-slip rotary dial making it much easier for you to improve production whilst working in lower light environments. This digital multimeter also has an IP67 certified protection with the durability to withstand drops up to 10 feet to suit harsh working environments. This digital multimeter is designed for indoor use, in areas with low condensation and to be used with standard or compatible test probes. For improved safety the U1242B series digital multimeters also allow you to run continuity tests with visual (flashing backlight display) and audio (beeper) alerts and will also detect glitches swiftly with the built in switch/relay counter. This battery powered handheld digital multimeter features true rms readings with a 10,000 count, 4 digit display and analogue bar graph results without the complications. Another special feature of this digital multimeter is that it has harmonic ratio measurement to quickly identify the presence of harmonics in AC signals.

Features & Benefits

• 10,000 - count dual display
• Overmold body casing
• Up to 0.09% basic DCV accuracy
• CAT IV 600 V and CAT III 1000 V over-voltage protection
• Longer battery life up to 300 hours
• Auto & Manual data logging - 200 readings
• Certified to IP67 protection
• Easy connectivity to PC with optional IR-USB cable or Bluetooth
• Frequency counter
• Built in Low pass filter for accurate VFD troubleshooting
• Harmonics Ratio

The U1242B series digital multimeter measures

• AC/DC voltage & current
• Resistance
• Voltage frequency
• Diodes
• Continuity
• Capacitance
• Temperature

Harmonics ratio

In real life, harmonics are present in AC power due to the fact that many electronic devices are powered by switched mode current pulses which travel back into the power source. If these unwanted harmonics become too large, the undesirable side effects include: overheating that shortens the lifespan of motors, generators and transformers, premature tripping of circuit breakers, and blown fuses. One of the fastest ways to detect and gauge the percentage of distortion due to harmonics is by measuring the harmonic ratio of the incoming AC voltage. You can perform this very easily on the U1242B handheld digital multimeter, with just a press of a button. The percentage helps you to decide if further analysis of the power source is required with an oscilloscope or a spectrum analyser.

Does this come with a calibration certificate?

Yes- Certificate of Calibration will be available.

Supplied with

Test lead set, 4 AAA alkaline batteries and instructions on CDROM

Keysight Technologies Multimeter, 10,000-Count Display, 300h Battery Life - U1240B Series - U1242B

Carry out accurate electrical tests with this multimeter from Keysight Technologies. It measures electrical properties such as current, voltage and resistance, as well as capacitance, frequency and temperature. This helps to simplify wiring checks and speed up circuit diagnostics on electrical installations. The 10,000-count display ensures you get a precise reading. This multimeter has an internal memory of 2000 readings, making it simple to store data.

Features & Benefits

• Backlit display for ease of reading in low-light environments
• Wide operating temperature range of -10°C to +55°C for use in demanding conditions

Applications

• Electronics manufacturing
• Electrical installations
• Automotive industry
• Laboratories and research

How long do the batteries in this multimeter last?

This multimeter uses four 1.5V AAA batteries with a battery life of 300 hours, making it a good choice for long-lasting portable use.

Can I transfer logged data to a smart device?

Yes. You can use an IR bracket (757-7588) to transfer data via Bluetooth to a compatible phone or tablet, giving you greater flexibility when collecting and analysing data.
