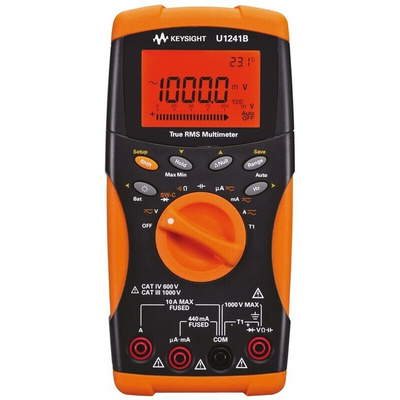

Keysight Technologies U1241B Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max - RS Calibrated, Мультиметр

Keysight U1241B Digital Multimeters

Keysight U1241B Series handheld digital multimeters are designed for users to perform tests confidently and efficiently over longer periods of time due to the precision, accuracy and repeatability. The U1241B digital multimeter is also designed to increase your production with the longer lasting battery life. The battery life will last up to 300 hours allowing you to work for longer periods of time without having to stop and battery change.

The ergonomic shaped handheld digital multimeter has a large display and adjustable backlight that allows you to single handedly select measurements functions using the anti-slip rotary dial making it much easier for you to improve production whilst working in lower light environments. This digital multimeter also has an IP67 certified protection with the durability to withstand drops up to 10 feet to suit harsh working environments.

This digital multimeter is designed for indoor use, in areas with low condensation and to be used with standard or compatible test probes. For improved safety the U1241B series digital multimeters also allow you to run continuity tests with visual (flashing backlight display) and audio (beeper) alerts and will also detect glitches swiftly with the built in switch/relay counter.

This battery powered handheld digital multimeter features true rms readings with a 10,000 count, 4 digit display and analogue bar graph results without the complications.

Features & Benefits

• 10,000 - count dual display
• Overmold body casing
• Up to 0.09% basic DCV accuracy
• CAT IV 600 V and CAT III 1000 V over-voltage protection
• Longer battery life up to 300 hours
• Auto & Manual data logging
• Certified to IP67 protection
• Easy connectivity to PC with optional IR-USB cable or Bluetooth
• Frequency counter
• Built in Low pass filter for accurate VFD troubleshooting

The U1241B series digital multimeter measures

• AC/DC voltage & current
• Resistance
• Voltage frequency
• Diodes
• Continuity
• Capacitance
• Temperature

Does this come with a calibration certificate?

Yes- Certificate of Calibration will be available.

Supplied with

Test lead set, 4 AAA alkaline batteries and instructions on CDROM

Keysight Technologies Multimeter, Battery-Powered, 1000mV to 1000V AC Voltage Measurement Range - U1240B Series - U1241B

Conduct electrical tests in demanding indoor environments using this multimeter from Keysight Technologies. It measures AC and DC voltage and current, as well as capacitance, frequency and resistance, so you can easily monitor the properties of your electrical system. There's also a continuity mode to check circuit components and a function to test diodes, making it a versatile instrument. A large digital display and adjustable backlight make it easy to read test results. As it's battery-powered, it's portable for convenient use. An IP67 rating means it's dust-tight and can withstand immersion in 1m of water for up to 30 minutes.

Features & Benefits

• Maximum battery life of 300 hours for long-term use
• Auto and manual data logging options for flexibility
• Ergonomic shape makes it comfortable to hold

Applications

• Electrical engineering
• Electronics assembly
• HVAC systems
• Research laboratories

What accessories are supplied with this multimeter?

This multimeter is supplied with four 1.5V AAA alkaline batteries, a calibration certificate, 4mm test probe leads and a quick-start guide, so you'll get everything you need to use your instrument immediately.

Keysight

U1241B and U1242B Handheld Digital Multimeters Users and Service Guide

U1240 Series Handheld Digital Multimeters Data Sheet
