Keysight Technologies U1251B Handheld Digital Multimeter, With RS Calibration, Мультиметр

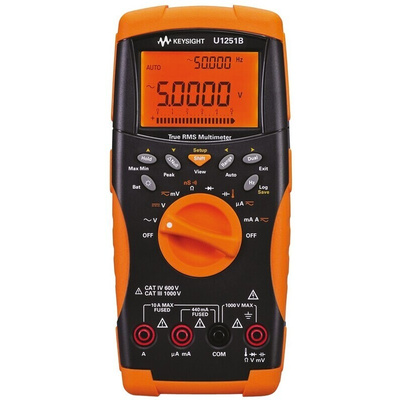

Keysight U1251B Digital Multimeters

Keysight U1251B Series handheld digital multimeters are designed for users to perform tests confidently and efficiently over longer periods of time due to the precision, accuracy and repeatability. The U1251B digital multimeter is also designed to increase production with the longer lasting battery life. The battery life will last up to 70 hours allowing you to work for longer periods of time without having to stop and battery change. The ergonomic shaped handheld digital multimeter has a large LCD display and backlight that allows you to single handedly select measurements functions using the anti-slip rotary dial making it much easier for you to improve production whilst working in lower light environments. This digital multimeter was built tough and certified to withstand industrial standards, the U1251B is perfect to face the demands of everyday tasks. For improved safety the U1251B series digital multimeters also allow you to run continuity tests with visual (flashing backlight display) and audio (beeper) alerts and will also detect glitches swiftly with the built in switch/relay counter. This battery powered handheld digital multimeter features true rms readings with a 50,000 count, 4 1/2 digit display and analogue bar graph results without the complications.

Features & Benefits

• 50,000 - count dual display
• Up to 0.025% basic DCV accuracy
• CAT IV 600 V and CAT III 1000 V over-voltage protection
• Longer battery life up to 70 hours
• Auto & Manual data logging up to 200 readings
• Certified to withstand industrial standards
• Easy connectivity to PC with optional IR-USB cable
• K type temperature measurements
• Auto ranging with MIN/MAX recording, peak & display HOLD

The U1251B series digital multimeter measures

• AC/DC voltage & current
• Resistance
• Voltage frequency
• Diodes
• Continuity
• Capacitance
• Temperature

Adjusting Tilt Stand

The U1251B digital multimeter comes with an adjustable tilt stand to free up your hands for day to day tasks. To adjust the meter to a hanging position, flip the stand upwards and over its maximum reach until it is detached from its hinge. Then flip the stand over so that the stand’s inner surface is facing the meter’s rear. Now, press the stand down into its hinge.

Does this come with a calibration certificate?

Yes- Certificate of Calibration will be available.

Supplied with

Application software, test leads, crocodile clips, user manual on CD ROM, 9V alkaline batteries
