U1252B OPT 900 + PLG, Keysight Technologies U1252B Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max - RS Calibrated, Мультиметр

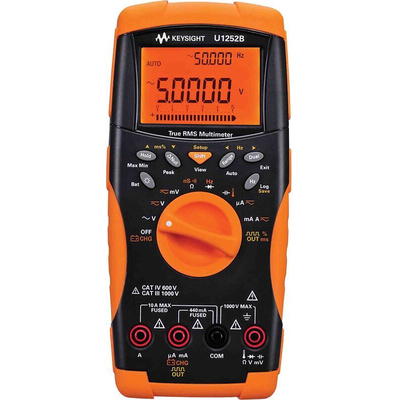

Keysight U1252B Digital Multimeters

Keysight U1252B Series handheld digital multimeters are designed for users to perform tests confidently and efficiently over longer periods of time due to the precision, accuracy and repeatability. The U1252B digital multimeter is also designed to increase production with the longer lasting battery life. The battery life will last up to 30 hours allowing you to work for longer periods of time without having to stop and battery change. This model has an added 20 MHz frequency counter and programmable square wave generator compared to the U1251B model allowing you to perform more tests conveniently with one tool. The ergonomic shaped handheld digital multimeter has a large LCD display and backlight that allows you to single handedly select measurements functions using the anti-slip rotary dial making it much easier for you to improve production whilst working in lower light environments. This digital multimeter was built tough and certified to withstand industrial standards, the U1252B is perfect to face the demands of everyday tasks. For improved safety the U1252B series digital multimeters also allow you to run continuity tests with visual (flashing backlight display) and audio (beeper) alerts and will also detect glitches swiftly with the built in switch/relay counter. This battery powered handheld digital multimeter features true rms readings with a 50,000 count, 4 1/2 digit display and analogue bar graph results without the complications.

Features & Benefits

• 50,000 - count dual display
• Up to 0.025% basic DCV accuracy
• CAT IV 600 V and CAT III 1000 V over-voltage protection
• Longer battery life up to 30 hours
• Auto & Manual data logging up to 200 readings
• Certified to withstand industrial standards
• Easy connectivity to PC with optional IR-USB cable or bluetooth
• K-type and J type temperature measurements
• Auto ranging with MIN/MAX recording, peak & display HOLD
• Built-in 20 MHz frequency counter
• Built-in programmable square wave generator
• Built-in battery charging capability

The U1252B series digital multimeter measures

• AC/DC voltage & current
• Resistance
• Voltage frequency
• Diodes
• Continuity
• Capacitance
• Temperature

Adjusting Tilt Stand

The U1251B digital multimeter comes with an adjustable tilt stand to free up your hands for day to day tasks. To adjust the meter to a hanging position, flip the stand upwards and over its maximum reach until it is detached from its hinge. Then flip the stand over so that the stand’s inner surface is facing the meter’s rear. Now, press the stand down into its hinge.

Does this come with a calibration certificate?

Yes- Certificate of Calibration will be available.

Supplied with

Application software, test leads, crocodile clips, user manual on CD ROM, rechargeable Ni-MH battery with power adapter

Keysight Technologies Multimeter, 50,000-Count Display, 36h Battery Life - U1250 Series - U1252B OPT 900 + PLG

Perform electrical tests in demanding environments using this multimeter from Keysight Technologies. For versatility, it can measure a comprehensive range of electrical properties, including current, capacitance and temperature. A rotary switch makes it simple to alternate between functions for ease of use. This handheld device has an ergonomic design for a comfortable grip over long periods of time. An over-moulded case helps to protect it from bumps for durability in heavy-duty environments. The 50,000-count digital display gives you precise measurements.

Features & Benefits

• Bluetooth-enabled for wireless data logging
• Built-in battery charging to minimise downtime
• Long battery life of 36 hours for long-lasting performance
• Offers a choice between manual and automatic data logging for versatility

Applications

• Electrical installations
• Electronics assembly
• Energy industry
• Laboratories

What accessories are included with this multimeter?

This multimeter is supplied with application software, a quick-start user guide and a rechargeable Ni-MH battery with a power adapter for quick and simple set-up. It also comes with leads and crocodile clips to help you carry out your tests.
