U1253B OPT 900 + PLG, Keysight Technologies U1253B Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max - RS Calibrated, Мультиметр

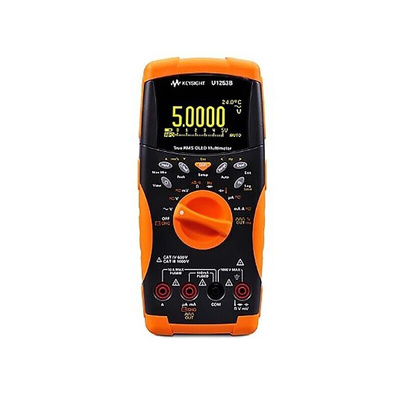

Keysight U1253B Digital Multimeters

Keysight U1253B Series handheld digital multimeters are designed for users to perform tests confidently and efficiently over longer periods of time due to the precision, accuracy and repeatability. The digital multimeter has a special feature and this is the OLED display. The OLED display has outstanding contrast levels, high brightness levels and comes with wider viewing angles up to 160 degrees to ensure that you get the right readings at the first glance at most angels. The U1253B digital multimeter is also designed to increase production with the longer lasting battery life. The battery life will last up to 7 hours allowing you to work for longer periods of time without having to stop and battery change. This model has an added 20 MHz frequency counter and programmable square wave generator compared to the U1251B model allowing you to perform more tests conveniently with one tool. The ergonomic shaped handheld digital multimeter has a large LCD display and backlight that allows you to single handedly select measurements functions using the anti-slip rotary dial making it much easier for you to improve production whilst working in lower light environments. This digital multimeter was built tough and certified to withstand industrial standards, the U1253B is perfect to face the demands of everyday tasks. For improved safety the U1253B series digital multimeters also allow you to run continuity tests with visual (flashing backlight display) and audio (beeper) alerts and will also detect glitches swiftly with the built in switch/relay counter. This battery powered handheld digital multimeter features true rms readings with a 50,000 count, 4 1/2 digit display and analogue bar graph results without the complications.

Features & Benefits

• 50,000 - count dual display
• OLED Display
• Up to 0.025% basic DCV accuracy
• CAT IV 600 V and CAT III 1000 V over-voltage protection
• Longer battery life up to 30 hours
• Auto & Manual data logging up to 1,000 readings
• Certified to withstand industrial standards
• Easy connectivity to PC with optional IR-USB cable
• K-type and J type temperature measurements
• Auto ranging with MIN/MAX recording, peak & display HOLD
• Built-in 20 MHz frequency counter
• Built-in programmable square wave generator
• Built-in battery charging capability

The U1253B series digital multimeter measures

• AC/DC voltage & current
• Resistance
• Voltage frequency
• Diodes
• Continuity
• Capacitance
• Temperature

Adjusting Tilt Stand

The U1251B digital multimeter comes with an adjustable tilt stand to free up your hands for day to day tasks. To adjust the meter to a hanging position, flip the stand upwards and over its maximum reach until it is detached from its hinge. Then flip the stand over so that the stand’s inner surface is facing the meter’s rear. Now, press the stand down into its hinge.

Does this come with a calibration certificate?

Yes- Certificate of Calibration will be available.

Supplied with

Quick reference guide, test leads, crocodile clips, rechargeable Ni-MH battery and power adapter

Keysight Technologies Multimeter, 8h Battery Life, 50mV to 1000V Voltage Measurement Range - U1250 Series - U1253B OPT 900 + PLG

Accurately measure electrical values such as voltage, current and resistance with this digital multimeter from Keysight Technologies. The unit has an OLED display that offers high contrast and brightness levels, making it easy to read metrics at a glance. It's supplied with a rechargeable Ni-MH battery that lasts for up to eight hours for uninterrupted work performance. Selecting functions is hassle-free thanks to the device's anti-slip rotary dial.

Features & Benefits

• Display viewing angle of 160° for ease of reading from most angles
• Compact dimensions of 203.5 (height) x 94.4 (width) x 59mm (depth) for ease of handling
• True RMS ensures accurate and reliable readings of non-sinusoidal and sinusoidal waves
• Low power consumption of 420mVA for energy efficiency

Applications

• Electronics testing
• Automotive industry
• Wiring installations
• Utility sector
• Healthcare applications

Can I use this multimeter at extreme temperatures?

Yes, this multimeter maintains full accuracy across a broad operating temperature range of -20°C to +55°C, making it a good choice for use in challenging conditions.
