60703, WISKA Combi Junction Box, IP66, IP67, 140mm x 140mm x 82mm

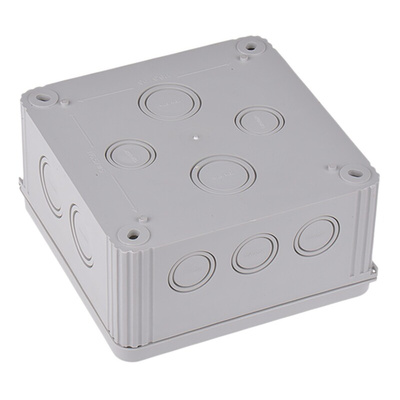

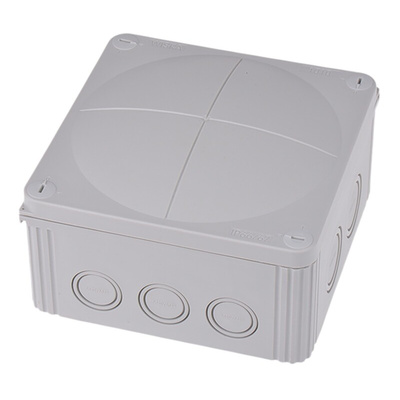

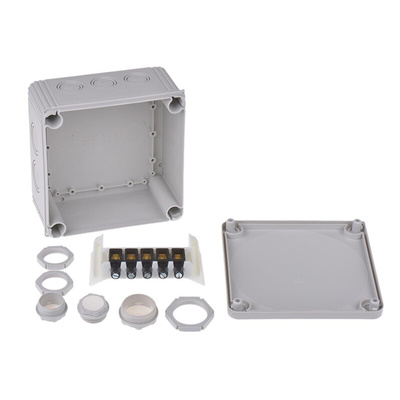

WISKA Combi Junction Box

The WISKA junction box has an integrated thread where the cable glands can be directly mounted into without any locknuts. The patented combination of thread and membrane saves one further working process. It is highly resistant to animal or vegetable fats, mineral oil, diesel, weak acids, strong and weak alkaline solution, as well as alcohol. It is mounted via holes in the corners of the box, separated from the inside of the enclosure. Thus the IP ratings are not affected.

Features and Benefits

10 side entries (5xM25/32, 2xM20, 3xM20/25), 4 base entries (2xM25/32, 2xM20/25)
10% more room inside because of the bellied cover
Flame retardant and halogen free
Grey in colour
Height is 82mm
Length is 140mm
Number of ways are 14mm
Polypropylene material
Quick release lid screws made of plastic will not rust and stay securely in place
Solid thermoplastic housing made from 2 different moulded materials
Width is 140mm

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
IP66 rated
IP67 rated

Wiska Combi Junction Boxes Catalogue

WISKA COMBI 1010 Data Sheet
