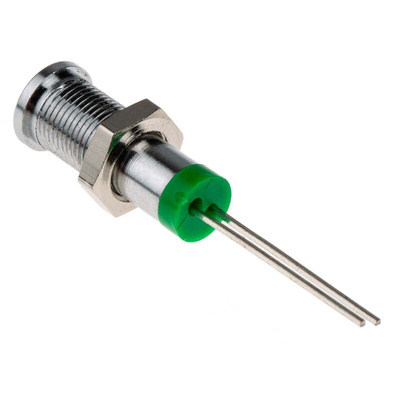

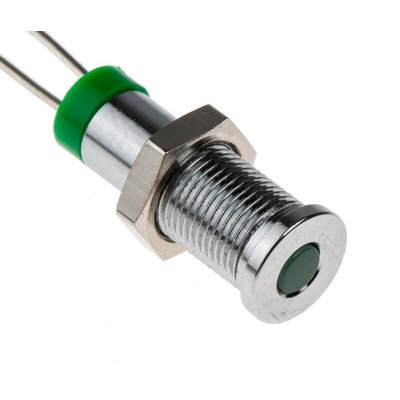

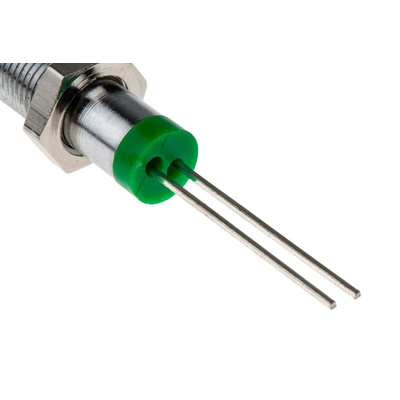

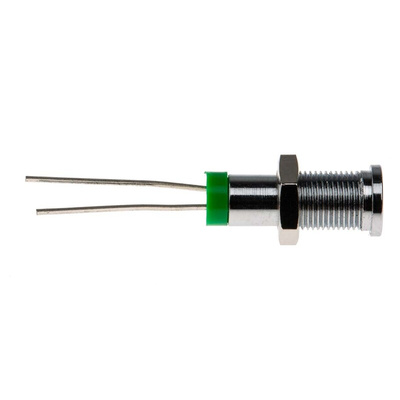

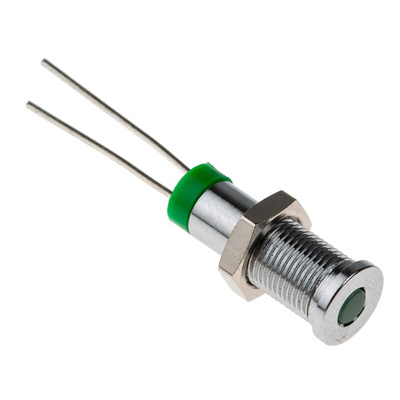

RS PRO Green Panel Mount Indicator, 2V dc, 6mm Mounting Hole Size, IP67, Индикатор

RS PRO Green Indicator, 2 V dc, 6 mm Mounting Hole Size, Lead Pins Termination, IP67

Need a waterproof LED indicator for use outdoors or in an industrial environment? This 2 V dc green lamp from the RS PRO range is sealed to IP67 standard, so it'll keep out water when submerged under a metre of water for half an hour. This makes it suitable for a variety of applications in fields ranging from medicine to agriculture.

Offering a high level of brightness for low power consumption, the lamp can deliver 8 mcd for 100,000 hours before it needs replacing. Its 3-mm lens is mounted in a chrome bezel, suitable for fitting in a 6-mm hole in panels up to 7 mm thick. The coloured diffused epoxy lens offers wide-angle viewing.

The indicator conforms to UL standards, ANSI/ESD S20.20:2014 and BS EN 61340-5-1:200 (electrostatic discharge) and RoHS (hazardous substances). You'll find that it's also supplied with a fixing nut, spring washer and rubber gasket.

Features and Benefits

• Green indicator light
• Waterproof rating IP67
• Lead pin terminations
• Intensity of 8 mcd
• Voltage rating of 2 V dc
• Chrome flush bezel
• Length of 15.9 mm
• Diameter of 3 mm
• Panel mounting
• Mounting hole size of 6 mm
• Maximum panel thickness of 7 mm
• Conforms to UL standards
• Meets ANSI/ESD S20.20:2014 and BS EN 61340-5-1:200 on electrostatic discharge
• Compliant with RoHS on hazardous substances
