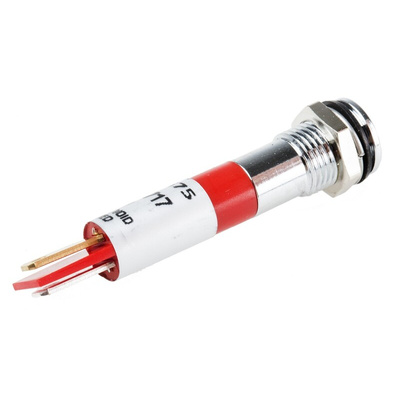

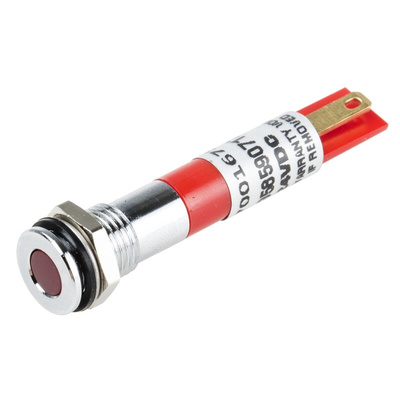

RS PRO Red Panel Mount Indicator, 24V dc, 8mm Mounting Hole Size, Solder Tab Termination, IP67, Индикатор

RS PRO Red Indicator, 24 V DC, 8 mm Mounting Hole Size, Solder Tab Termination, IP67

This high-visibility red LED indicator from RS PRO makes it easy to check the operating status of your industrial equipment. It features a brightness of 10 mcd, so you can see it from long distances. The indicator also has a bright chrome flush bezel that contrasts with the light and offers wide viewing angles, further increasing visibility.


This type of indicator is easy to install on a printed circuit board (PCB), switch or pushbutton. Simply insert it through an 8 mm hole in your equipment or instrument panel and secure the indicator with the included nut and spring washer.


As part of our RS PRO range, this product has been thoroughly tested for quality and reliability. You'll find red LED lights like this one used to indicate errors or fail states on electronic devices and circuit boards.

Features and Benefits

• Current rating of 20 mA


• Length of 33.9 mm


• Solder tab-type termination


• Voltage rating of 24 V DC


• Operating temperature range of -40°C to +85°C


• IP67 rating for protection against dust and submersion in up to 1 m of water
