RS PRO Red Panel Mount Indicator, 24V dc, 8mm Mounting Hole Size, Solder Tab Termination, IP67, Индикатор

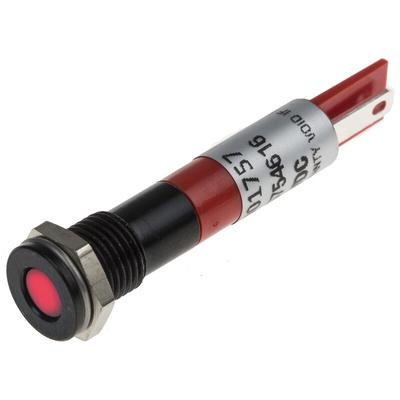

RS PRO Red Indicator, 24 V DC, 8 mm Mounting Hole Size, Solder Tab Termination, IP67

Do you need a highly visible signalling device? This RS PRO red LED indicator is suitable for signalling purposes in commercial and industrial equipment. It's fitted with tab-type solder terminals for an easy and reliable connection with your electricity supply.


This product's IP67 rating means it's well-protected from water damage and dust, so it's ideal for outdoor applications and harsh industrial settings. The indicator has a black chrome finish that contrasts with the light for increased visibility, as well as a flush bezel to fit neatly on flat surfaces.


This red LED is suitable for a range of applications, including electronic devices, heavy hauling equipment and process control systems. The product complies with RoHS (Restriction of Hazardous Substances) standards, which means it contains only minimal amounts of environmentally harmful materials.

Features and Benefits

• Current rating of 20 mA


• Intensity of 10 mcd


• Length of 33.9 mm


• Mounting hole size of 8 mm


• Voltage rating of 24 V DC


• Operating temperature range of -40°C to +85°C
