RS PRO Green Panel Mount Indicator, 2V dc, 6mm Mounting Hole Size, Lead Wires Termination, IP67, Индикатор

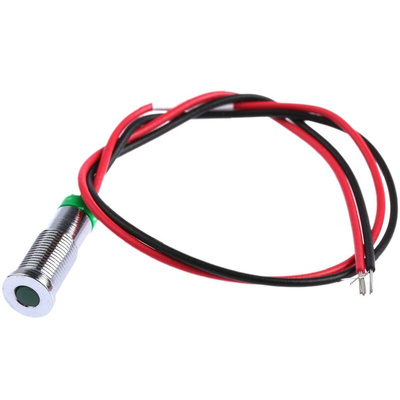

RS PRO Green Indicator, 2 V DC, 6 mm Mounting Hole Size, Lead Wires Termination, IP67

Use this green LED indicator from the RS PRO range as a signal for the status of your electrical circuits. It has a flush bezel and comes with a fixing nut and spring washer, making it easy to panel mount.


Thanks to its IP67 rating, this unit is protected against dust and temporary submersion in water. It's suitable for use at temperatures between -40°C and +85°C, so it can withstand a variety of tough industrial environments.


You can use this indicator for signalling applications in printed circuit boards (PCBs) and vehicles. It's also commonly mounted on push buttons and switches.

Features and Benefits

• Current rating of 20 mA


• Voltage rating of 2 V dc


• Intensity of 8 mcd


• Lens lamp size of 3 mm


• LED length of 15.9 mm


• Flush bezel style


• Mounting hole size of 6 mm


• Lead wire termination type


• Fixed light illumination


• RoHS (Restriction of Hazardous Substances) compliant

EC Declaration of Conformity

RS Pro Datasheet
