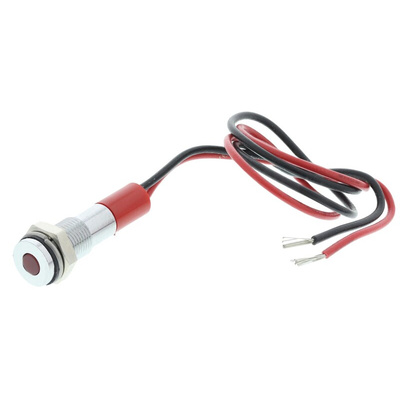

RS PRO Red Panel Mount Indicator, 24V dc, 6mm Mounting Hole Size, Lead Wires Termination, IP67, Индикатор

RS PRO Red Indicator, 24 V DC, 6 mm Mounting Hole Size, Lead Wires Termination, IP67

Need a reliable warning light for harsh industrial environments? The RS PRO red indicator has an IP67 rating, so it's suitable for indoor and outdoor applications where dust and moisture are present. It has an operating temperature of -40ºC to +85°C, making it a good solution in a variety of harsh industrial environments too.
The red indicator has an LED lamp to provide long-lasting light, so it's ideal for warning and signalling systems. Its diffused epoxy lens helps to disperse light and protect the LED. The indicator comes with colour-coded wire terminations, a fixing nut and a spring washer ready to mount on your panel. It also has a flush-style bezel for a neater fitting.
This type of indicator is found on vehicle dashboards and machine safety systems. It's suitable for installation in panels with a maximum thickness of 7 mm.

Features and Benefits

• Voltage rating of 24 V DC
• Mounting hole size of 6 mm
• Lamp size of 3 mm
• Current rating of 20 mA
• Intensity of 10 mcd
• Length of 21 mm
• Chrome-coloured bezel
• Complies with RoHS (Restriction of Hazardous Substances) standards
• Complies to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards

EC Declaration of Conformity

RS Pro Datasheet
