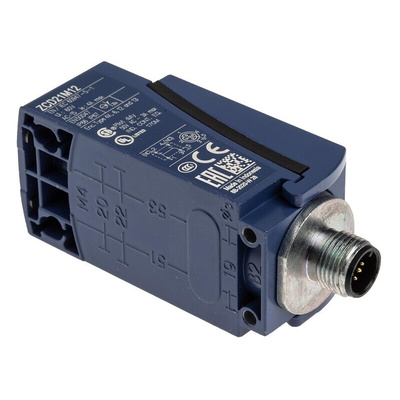

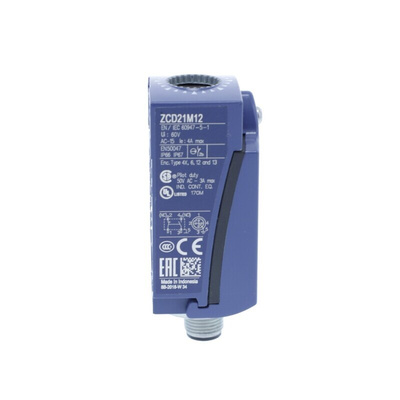

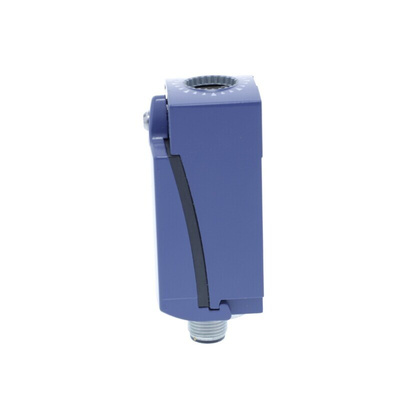

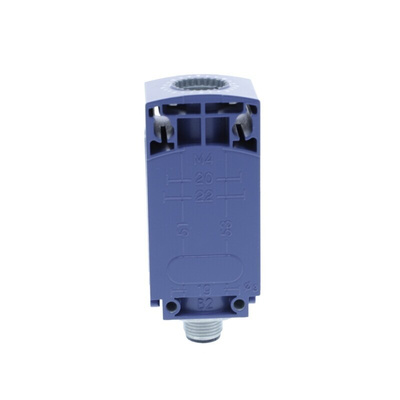

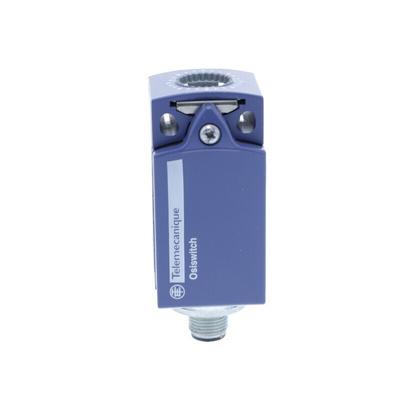

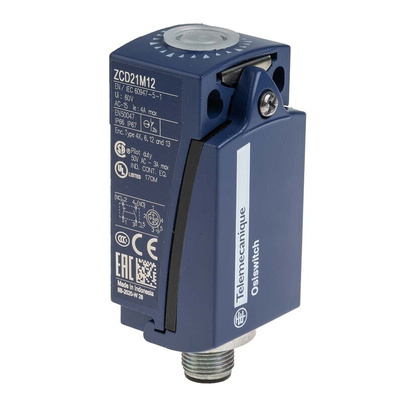

ZCD21M12, Telemecanique Sensors OsiSense XC Series Limit Switch, NO/NC, DP, Metal Housing, 240V ac Max, 1.5A Max

OsiSwitch Limit Switch Bodies

The OsiSwitch series contains a selection of bodies and levers that are compatible with products from the OsiSense XC limit switch range.

Features & Benefits

Limit Switch Body
Silver plated contacts with snap action
2 Poles
Durable and strong housing
Short circuit protection

Product Application Information

All industrial machines: packaging, materials handling, conveying, machining, food and beverage, service sector.

Telemecanique Sensors Limit Switch, M12 Connection, Short-Circuit Protection - OsiSense XC Series - ZCD21M12

Need a component that hits the brakes when it counts? Choose this limit switch from Telemecanique Sensors to make or break an electrical connection when it detects the presence or absence of an object. As it's a snap-action switch, it delivers a lightning-fast response when actuated to minimise downtime and maximise efficiency. Silver-plated contacts are highly conductive, which reduces signal loss to keep your operation running like clockwork. Thanks to zinc alloy housing that resists corrosion and impact, this is an option you can rely on for the long term.

Features & Benefits

• Performs effectively in temperatures between -25°C and +70°C to stand up to challenging conditions
• Space-saving design with dimensions of 31 (W) x 65 (H) x 30mm (D) to fit neatly in busy setups
• Weighs in at 140g, so puts little strain on your mounting surface

Applications

• Industrial automation
• HVAC equipment
• Robotic systems
• Material handling

What does a NO/NC configuration mean?

A NO/NC configuration in a switch like this means it has one normally closed (NC) contact and one normally open (NO) contact. This is a versatile setup as it can control two possible actions.
