XCKM102, Telemecanique Sensors OsiSense XC Series Plunger Limit Switch, NO/NC, IP66, DP, Zinc Alloy Housing, 240V ac Max, 10A Max

Telemecanique Limit Switches

Introducing Telemecanique XCKM range of limit switches and accessories. These Telemecanique limit switches are the perfect solution for a multitude of applications including escalators, electrical assembly equipment and material handling. A limit switch is commonly made up of an actuator head, switch body and receptacle, predominantly used as part of a control system within industrial applications such as those listed before.

How does a limit switch work?

The limit switches function through a contact proximity sensor device that features an actuator that is mechanically linked to a set of output contacts. When an object comes into contact with the actuator, the device then operates the contacts to make or break an electrical connection.

Standards

VDE0660, IEC947-5-1

Approvals

UL, CSA

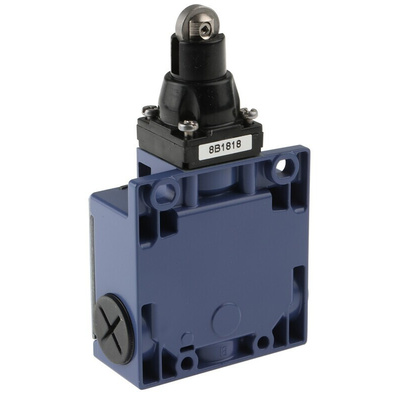

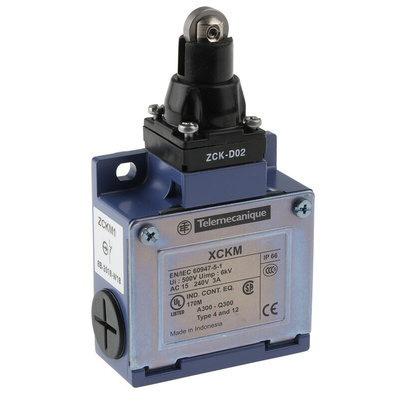

Telemecanique XCKM102 Limit Switch

• Forms part of the OsiSense XC range of products
• Fixed body type
• Features a plunger head
• Comprised of a hardwearing metal material
• The operator type is a spring return roller plunger metal
• 1NC - 1 NO contact types
• 2 poles
• Snap-action contact operation
• Minimum force tripping is 12 N
• Dimensions - W64mm x H64mm x D30mm

Approvals

UL; CSA
