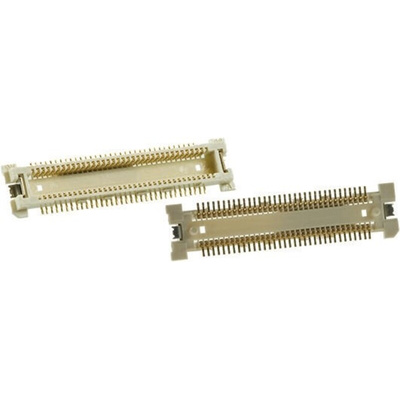

FX11A-80P/8-SV(71), Hirose FX11 Series Straight Surface Mount PCB Header, 80 Contact(s), 0.5mm Pitch, 2 Row(s), Shrouded

7008512
Номер производителя: FX11A-80P/8-SV(71)Производитель: Hirose
Цена за шт. (норма упаковки 5 шт)
1614.60 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Hirose FX11 Series 0.5 mm High-Speed Board to Board Connectors with Ground Plate

FX11 series 0.5 mm high-speed board to board SMT header and receptacle connectors with a low profile design able to produce board to board mating heights of 2 mm, 2.5 mm and 3 mm. The 0.5mm pitch offers space saving on the PCB and makes these FX11 connectors ideal for use in high density applications. These FX11 series board to board connectors feature SMT ground plates fixed to either side of the connectors for improved transmission characteristics. The signal and ground are arranged in a 10:1 ratio for ground stability and reduced noise. Metal fittings either end of the connector provide a robust retention to the PCB and protect against solder peeling and mechanical stress. These fittings also connect to the ground plates to provide a stronger ground. The contacts of these 0.5mm FX11 series high-speed board to board PCB connectors feature a long wiping distance for highly reliable electrical continuity. A solder gap in the board mounting portion of the contact helps to prevent solder wicking. These FX11 board to board connectors also feature PCB guide posts that provide extra stability on the PCB.

Features and Benefits

• High density design for PCB space saving
• Low profile design for board mating heights of 2 mm, 2.5 mm and 3 mm
• Ground plates for improved transmission efficiency
• 10 Signal: 1 Ground arrangement for noise reduction
• Metal fittings for robust connection to PCB and protection against solder peeling
• Highly reliable contacts with long wiping distance
• Solder gap on contacts to prevent solder wicking
• PCB guide posts for extra stability on PCB

Product Application Information

The low profile high density design of these 0.5mm FX11 series high-speed Board to Board connectors make them ideal for use in miniature electronic equipment. Applications include notebook computers, PDAs and other portable devices

0.5mm Board to Board - Hirose FX11

Техническая спецификация
pdf0.5mm Pitch Connectors with Ground Plate for 2mm to 3mm Board-to-Board Connections FX 11 Series Data Sheet
Защищенный/Незащищенный:
Shrouded
Кол-во контактов:
80
Количество рядов:
2
Концевая заделка:
Припой
Материал контактов:
Медный сплав
Номинал тока:
300.0mA
Номинальное напряжение:
50.0 V
Ориентация корпуса:
Прямой
Покрытие контактов:
Золото
Серия:
FX11
Система соединителя:
Board to Board
Тип монтажа:
Поверхностное крепление
Шаг:
0.5мм
