H251ALED, Wolf Safety H-251A ATEX LED Hand Lamp Black - Rechargeable 210 lm, Фонарь

Rechargeable Halogen ATEX Handlamp and accessories.

Halogen bulb with high intensity spot beam (LED version available also, please see RS Stock No 701-2842)
Battery gives up to 7 hours duration with deep discharge protection
Uses 3·75V, 2·8 Watt Halogen bulb, 100 hours life

Wall mountable lamp charger and rechargeable battery available separately (please see RS Stock No. 597-346)

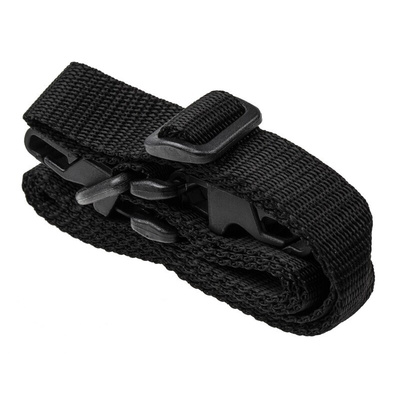

Supplied with non-spillable, rechargeable battery and detachable shoulder strap

ATEX 94/9/EC Directive Compliant
EN50014, EN50019, EN50020, EN50281-1-1 Apparatus Standard
Dust ignition protected for use in zones 21 and 22

Note

The charger is not EX rated and the handlamp must be charged outside the hazardous area.

Group and Category

II 2 GD EEx e ib IIC T4

Certificate No.

BAS 00 ATEX 2176

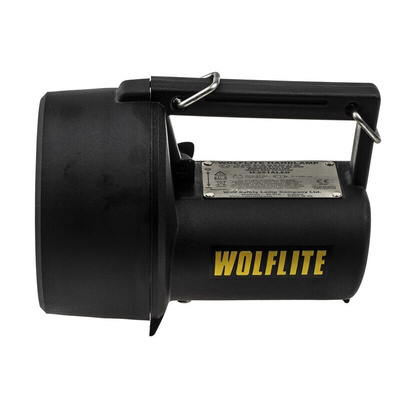

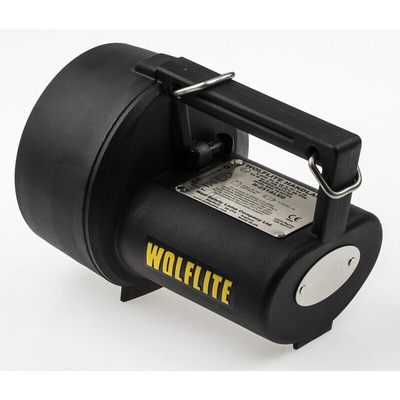

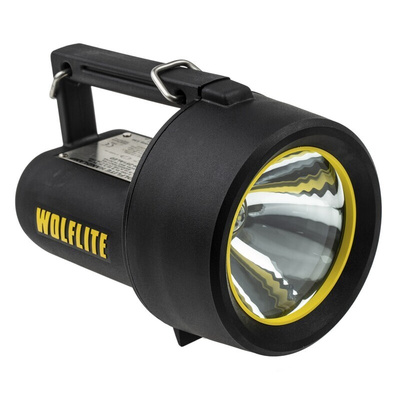

Wolf Safety LED Rechargeable Handlamp

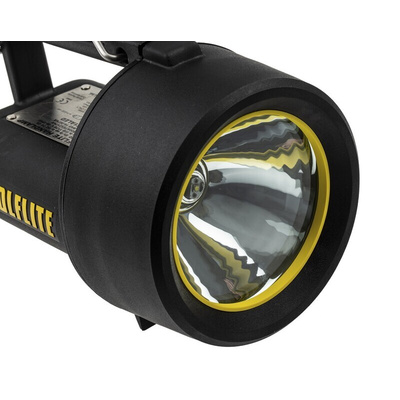

The Wolf Safety LED rechargeable handlamp has 210 lumens lighting power and a range of 5m. This Handlamp offers extreme robustness and reliability in harsh environments. It's scratch and impact resistant lens are made from 6mm toughened glass and the body and lens ring are moulded in a highly resilient thermoplastic material to withstand drop and impact expected from heavy industrial use, even at sub-zero temperatures. The material is electrostatic non-hazardous, ensuring there is no risk of a dangerous. The LED light source is focused within a 100mm diameter parabolic reflector giving the user an extremely well-defined beam of intense white light.
Wolf Safety Chargers:
C-251HV = Stock no: 594-346
C-251HVE (European 2- Pin Plug) = Stock no: 380-7961
Note:
The Wolf C-251HV charger is not EX rated and therefore the handlamp must be charged outside the hazardous area.

Features and Benefits

Dust ignition protected for zones 21 and 22, for dusts with ignition temperatures over 170°C
Electronic current limited battery with power fail operation and deep discharge protection
Increased light output and battery duration with LED option
LED light source gives increased light output and battery duration
Robust anti-static thermoplastic lamp enclosure
Fitted for spot with fringe light option
5Ah, 4V sealed lead acid battery
Light duration is up to 24 hours
Up to T4 temperature class

Certifications

ATEX certified
CE certified
IECEx certified
IP66 rated
IP65 rated
Group I M1 Mining approval

Hazardous Area

WOLFLITE RECHARGEABLE HANDLAMP Operation and Maintenance Instructions

Wolf Safety Portable ATEX Lighting

Safety Datasheet

Contains SVHC - Lead - CAS No. 7439-92-1

H251ALED Datasheet
