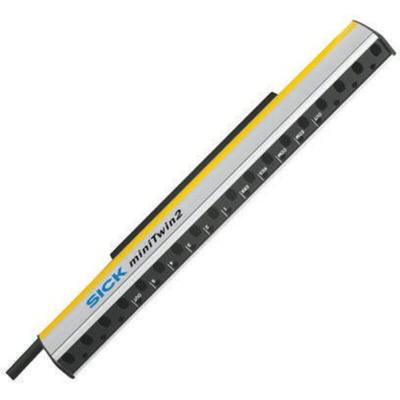

C2MT-06034BBC03FE0, Sick C2MT Series miniTwin Light Curtain, Sender & Receiver, 34mm Resolution, Световые завесы

Sick Safety Light Curtain

Note: For a complete light curtain system (sender and receiver), please select the complementary component shown in Accessories

Features and Benefits

Uniquely, the miniTwin is both sender and receiver unit integrated in a single compact housing
Stand-alone and cascade use and can be mounted anywhere and in any orientation
Combine up to three miniTwin to create cascaded systems
No blind zones even when systems are cascaded in corner mounting
LED-guided start-up
LED indicators along the length of the device serve as a rapid alignment aid, status indicator, and diagnostic tool
Intelligent configuration without software
System plug on the back of the miniTwin can be easily moved so the cable exit is facing upwards or downwards (or replaced with a 2-way plug for cascading 3-pairs)
Cascading connections and integration with safety controller always use a 5-pin M12 standard plug
Simplified mounting brackets: O-Fix for flat mounting (optional extra for stand-alone use only), C-Fix for cascade structures around corners, C-Fix and L-Fix for vertical mounting
EDM and remote reset
Use with UE410 flex classic controller(480-942) or UE12 safety relays
Protective field height 600mm
Scanning range is from 0m to 8m
Maximum response time is 13ms
Terminal type is 5-Pin, M12 Connector

Applications

Robots
Packaging machines
Special purpose equipment
Process machinery
Injection moulding machines
Transfer lines
Automated warehouses
Textile machinery
Electronic component assembly lines
Bottling and filling machines

Certifications

IP65 rated

CE certified
cULus approved
IP65 rated
EN/IEC 61496-1
EN ISO 13849
IEC 61508
EN 62061
