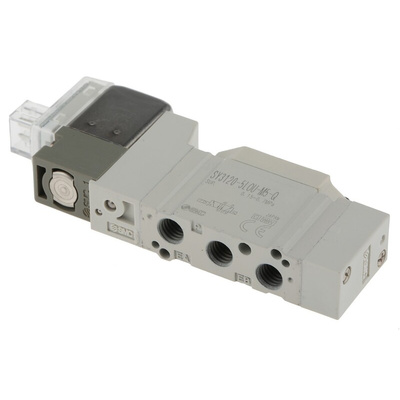

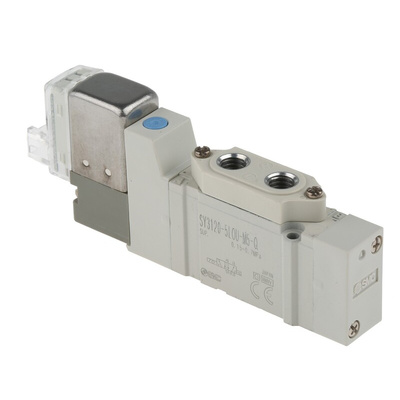

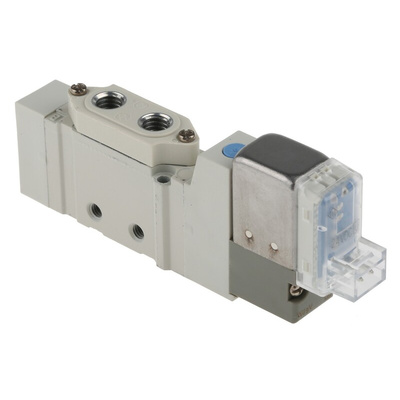

SY3120-5LOU-M5-Q, SMC 5/2 Pneumatic Control Valve - Solenoid/Pilot Metric M5 x 0.8 SY3000 Series 24V dc, Клапан

SMC Solenoid Valve

The SMC SY3000 series 5/2 ports solenoid valve has a supply voltage of 24VDC. This valve has an M5x0.8 port connection and 2-position single type actuation. It has low power consumption and therefore decreased engineering costs. This valve has a display LED with standalone mount. It has a pilot exhaust and a copper-free design. This valve can be used singly or with a manifold system. The low power consumption enables direct operation by a PLC. The valve cover also uses stainless steel, which makes it stronger. This valve is available with a 300mm lead wire without a connector.
Note:
DIN rail kit, silencer and blanking plate need to be ordered separately

Features and Benefits

Solenoid power consumption is 0.4W
Operating pressure ranges between 0.15MPa and 0.7MPa
Operating temperature ranges between -10°C and 50°C
Supplied with surge voltage suppressors (non-polar type)

Certifications

IP65 rated

Datasheet
