SY7120-5YO-02F-Q, SMC 5/2 Pneumatic Solenoid Valve - Solenoid/Pilot G 1/4 SY7000 Series 24V dc, Клапан

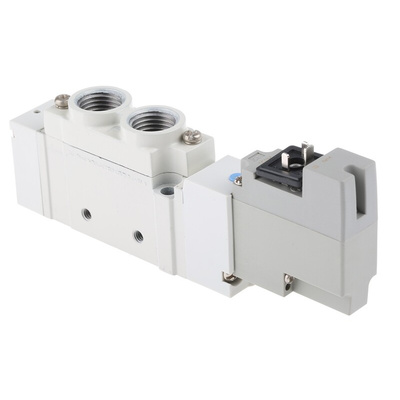

SMC Solenoid Valve

The SMC SY7000 series 5/2 ports solenoid valve has a supply voltage of 24VDC. This valve has a 1/4in G port connection and 2-position single type actuation. It has low power consumption and therefore decreased engineering costs. This valve has a display LED with a stand-alone mount. The valve cover also uses die-cast aluminium, which makes it stronger. This valve is available with DIN terminal type “Y” without connector.
SMC SY and VZ Series
These valves can be used singly or with a manifold system. Low power consumption enables direct operation by PLC. They have a non-locking manual override.

Features and Benefits

Solenoid power consumption is 0.45W
Maximum flow rate is 883.4NL/min
Operating pressure ranges between 0.15MPa and 0.7MPa
Operating temperature ranges between -10°C and 50°C
Solenoid valves are extremely compact and offer high flow rates

Certifications

IP65 rated
EN-175301-803C
CE certified
