Schneider Electric Spacial SDB Series Steel Wall Box, IP55, 256 mm x 206 mm x 93mm, Настенный шкаф

Spacial SDB Steel Multi-Purpose Wall Box / Junction Box.

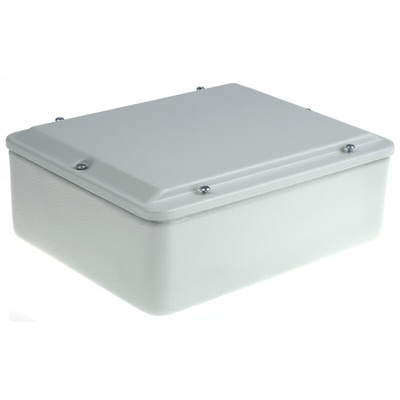

From Schneider Electric this is the NSYDBN2520 steel wall-mounted multi-purpose enclosure, part of the Spacial SDB range of wall boxes and junction boxes.
The RAL 7035 light grey box has M4 threaded holes with removable blanking plugs suitable for fixing optional chassis plate and external dimensions of 256 x 206 x 93 mm and a screw fixing low plain cover.

The SDB wall box range has many benefits including:

• Excellent mechanical resistance.


• Stamped cover and body.


• Choice of dimensions with and without knockouts.


• Watertight.


• PVC gasket protection.


• Choose models with and without hinges.


• High covers for larger models.


• Easy fixing for internal accessories.


• Maximum internal space.


• Simple design.

Wall box finishes available.

• Polyester epoxy paint.


• Leather type surface.


• RAL 7035 Grey colour.

Features and Benefits.

• Multi-purpose empty wall box enclosure / junction box.


• Low plain cover.


• Wall mounting.


• Made from steel with an Epoxy polyester powder coating.


• IP55 – protection against solid bodies larger than 1 mm, against water spray from all directions


• IK07 – protected against a 500g object from 40cm in height


• PVC sealing gasket between lid and box

Typical Applications.

NSYDBN2520 Spacial SDB industrial wall box can be used in various applications such as underground parking, road, railway tunnels and transport infrastructures or any application that requires the protection of electrical connections from heat or shocks.

Supplied with.

• Wall box enclosure cover, wall box cover and 1 cover screw.

Standards

IEC 62208

Datasheet NSYDBN2520

Universal Enclosures Catalogue

Green Premium Ecolabel

Product Environmental Profile
