NSYS3D3320P, Schneider Electric Spacial S3D Series Steel Wall Box, IP66, 300 mm x 300 mm x 200mm, Настенный шкаф

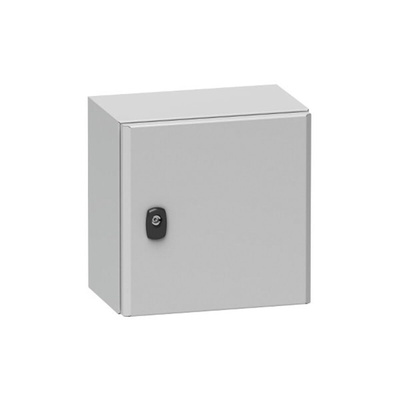

Schneider Electric Steel Wall Box, 300 (H) x 300 (W) x 200mm (D) - Spacial S3D Series - NSYS3D3320P

Protect and secure your industrial equipment's electrical components with this robust wall box from Schneider Electric. Its steel body is durable and has an IK10 mechanical resistance rating, which means it can withstand the impact force of a 5kg object dropped from 20cm. A cable gland plate inside the enclosure allows for tidy and organised wire entry. For added security, this unit comes with a hinged door that's secured by a 3mm double-bar lock to prevent unauthorised access. The door opens up to 120°, giving you easy access to the box's contents.

Features & Benefits

• Epoxy polyester surface finish for corrosion resistance and long service life
• IP66 (ingress protection) rating indicates protection from dust and high-pressure water jets
• Door can be removed and reversed to open from left or right for versatility
• Handle serves as both a key and tool for removing protective studs

Applications

• Robotics and automation
• Manufacturing
• Construction

Is this wall box suitable for outdoor use?

This wall box is UV-stable, which means it doesn't deteriorate when exposed to ultraviolet rays, such as sunlight. It's also resistant to strong water jets, so it can be used both indoors and outdoors.

Standards

Compliance with enclosure standards IEC 62208, UL, CUL, BV, DNV and GL.

Datasheet

Catalogue - Universal Enclosures

Product Environmental Profile

Steel wall-mounting enclosures
