NSYS3D5420P, Schneider Electric Spacial S3D Series Steel Wall Box, IP66, 500 mm x 400 mm x 200mm, Настенный шкаф

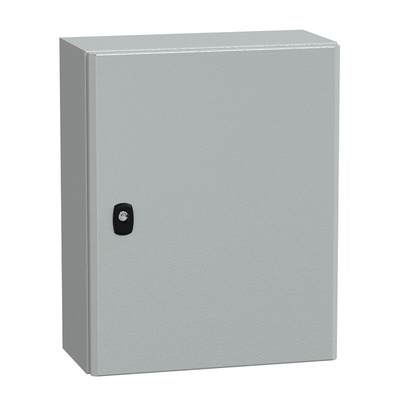

Schneider Electric Steel Wall Box, 500 (H) x 400 (W) x 200mm (D) - Spacial S3D Series - NSYS3D5420P

Ensure the safe storage of your sensitive electrical equipment with this wall box from Schneider Electric. Thanks to its corrosion-resistant steel body and durable PU (polyurethane) sealing gasket, it's suitable for both indoor and outdoor use. The hinged door can be removed and reversed for a left or right opening to suit your needs. For easy access to the contents, the door opens at an angle of 120°. This unit can be installed with wall brackets or internal panel mounts using its removable rear mounting plate.

• Compact dimensions of 500 (H) x 400 (W) x 200mm (D) allows fitting in smaller spaces
• Supplied with a cable gland plate for easy drilling and cable access
• Double sheet thickness of 20mm to ensure strength and rigidity during use
• IP66 (ingress protection) rating for protection against powerful water jets and dust particles

Applications

• Medical equipment
• Electrical circuits
• Data centres

Can I lock this terminal box?

Yes, the box comes with a 3mm double-bar lock. This limits access to keyholders, keeping your equipment safe from tampering.

Standards

Compliance with enclosure standards IEC 62208, UL, CUL, BV, DNV and GL.
