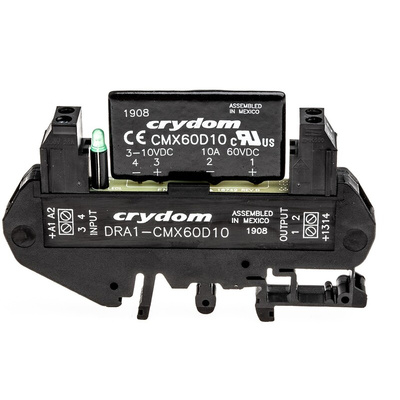

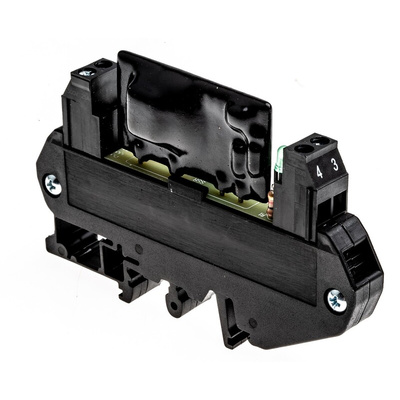

DRA1-CMX60D10, Sensata / Crydom DRA1 CMX Series Solid State Interface Relay, 10 V dc Control, 8 A Load, DIN Rail Mount, Реле

DIN Rail Mount - DRA1-CMX Series

10mm single channel DIN rail mount SSR assembly
DC ratings up to 200 Vdc and 8 A
3-10 and 20-28Vdc control
SPST-NO function
Cage style screw terminals for easy connection
Fits standard 35mm DIN rail
Includes LED Status indicator

Note

Regardless of SSR rating, the DIN-rail socket limits the continuous current rating of the modular assembly to 8A

Sensata | Crydom Solid-State Interface Relay, 61mm Height, 100μA Off-State Leakage Current - DRA1 CMX Series - DRA1-CMX60D10

Looking for a device that facilitates fast on-off actuation for your electrical system? Choose this solid-state interface relay from Sensata |Crydom. It uses electromagnetic power to control the flow of energy into your circuitry. This means there are no moving parts, reducing the risk of wear and tear for a longer service life. An operating voltage range of 1 to 60V DC means it's suitable for use in low-power applications. This component features cage-style screw terminals for ease of installation. Use it for applications such as automation processes, motor control and pumping operations.

Features & Benefits

• Low off-state leakage of 100μA for efficient operation
• LED status indicator for ease of monitoring
• Light weight of 28.6g to minimise strain on your equipment

Can I use this relay in extreme temperatures?

Yes. This item has a broad operating temperature range between -30°C and +80°C, so it's suitable for use in harsh conditions.

Where can I mount this device?

This device is designed for mounting on a DIN rail, making installation quick and simple.

DC Switching

Datasheet

Declaration of Conformity 2014/35/EU

Line Drawing - DRA1-CX Series
