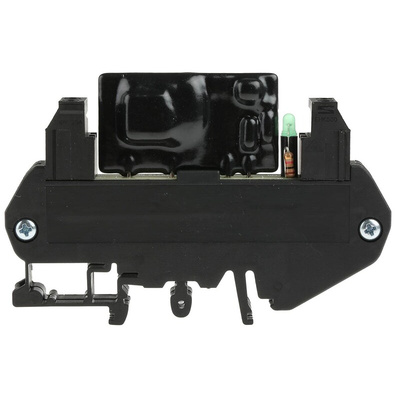

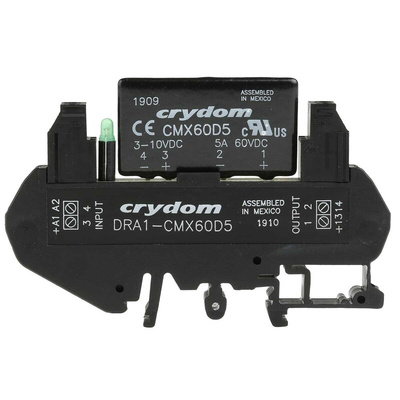

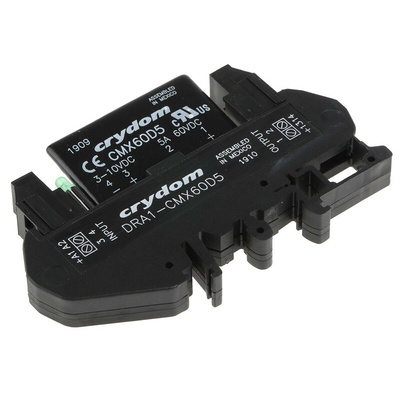

DRA1-CMX60D5, Sensata / Crydom DRA1 CMX Series Solid State Interface Relay, 10 V dc Control, 5 A Load, DIN Rail Mount, Реле

DIN Rail Mount - DRA1-CMX Series

10mm single channel DIN rail mount SSR assembly
DC ratings up to 200 Vdc and 8 A
3-10 and 20-28Vdc control
SPST-NO function
Cage style screw terminals for easy connection
Fits standard 35mm DIN rail
Includes LED Status indicator

Note

Regardless of SSR rating, the DIN-rail socket limits the continuous current rating of the modular assembly to 8A

Sensata | Crydom Solid-State Interface Relay, 0 to 5A Output Current Range, Screw Terminals - DRA1-CMX Series - DRA1-CMX60D5

Manage the switching of an electrical load with this solid-state interface relay from Sensata | Crydom. As the component has no moving parts, there's little chance of wear for reduced maintenance needs. It's designed for mounting on a DIN rail for ease of installation. Cage-style screw terminals make wiring simple while providing secure connections that won't come loose, even in the event of heavy vibrations. You can use an SSR like this one for heating, lighting or motion control systems.

• LED status indicator for quick and convenient visual diagnostics
• Broad operating temperature range between -20°C and +80°C for use in demanding settings
• Maximum turn-on time of 1ms for a fast response
• Compact dimensions of 89.6 (L) x 10 (W) x 62.2mm (H) to maximise packing efficiency on your rail or PCB

What's the operating voltage range of this interface relay?

This interface relay has an operating voltage range of 1 to 60V AC, so it's a good choice for use in low-power systems.

DC Switching

Dra_ Drs series relays and Sockets Brochure

Declaration of Conformity 2014/35/EU

Datasheet - DRA1-CMX60D5
