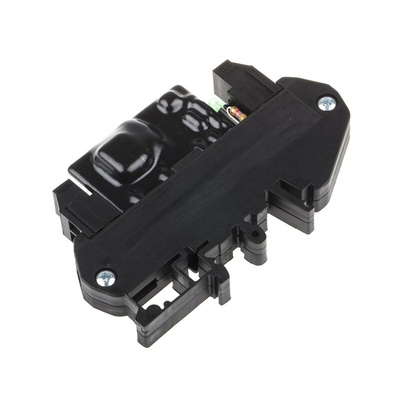

DRA1-CMXE60D10, Sensata / Crydom DRA1 CMX Series Solid State Interface Relay, 28 V dc Control, 8 A Load, DIN Rail Mount, Реле

DIN Rail Mount - DRA1-CMX Series

10mm single channel DIN rail mount SSR assembly
DC ratings up to 200 Vdc and 8 A
3-10 and 20-28Vdc control
SPST-NO function
Cage style screw terminals for easy connection
Fits standard 35mm DIN rail
Includes LED Status indicator

Note

Regardless of SSR rating, the DIN-rail socket limits the continuous current rating of the modular assembly to 8A

Sensata | Crydom Solid-State Interface Relay, 61mm Height, 15pF Capacitance - DRA1 CMX Series - DRA1-CMXE60D10

Choose this solid-state interface relay from Sensata | Crydom to quickly switch electrical power. Its maximum turn-on time is only 1ms, giving you fast actuation of your processes. The device has a broad load voltage range between 1 and 60V DC, so it's a useful option for a wide variety of low-power applications. This item fits onto standard 35mm DIN rails and features cage-style screw terminals for ease of installation. You'll commonly find it used in motion, lighting and heating control systems.

Features & Benefits

• Off-state leakage current of 100μA for efficient operation
• Broad operating temperature range between -30°C and +80°C for use in harsh conditions
• LED status indicator for ease of monitoring and troubleshooting
• Thermally conductive epoxy encapsulation for resistance to wear and heat
• Capacitance of 15pF for good electrical storage potential, giving you a speedy start-up

What are the dimensions of this unit?

This relay has compact dimensions of 89.6 (L) x 10 (W) x 61mm (H), so it's a space-efficient choice that fits in tight areas.
