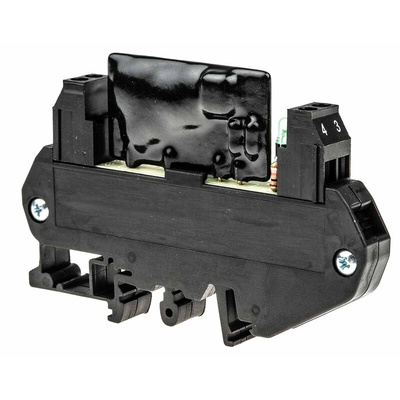

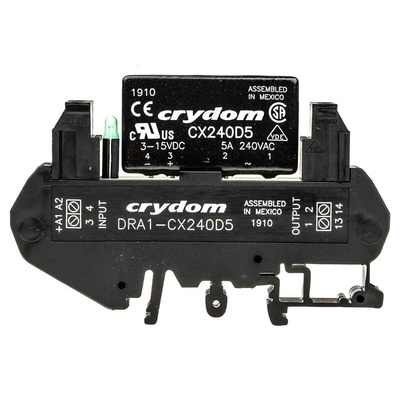

DRA1-CX240D5, Sensata / Crydom DRA1-CX Series Solid State Interface Relay, 15 V dc Control, 5 A rms Load, DIN Rail Mount, Реле

DIN Rail Mounting - DRA1 CX Series

10mm single channel DIN rail mount SSR assembly
AC ratings up to 530 VAC and 5 Amps
Cage style screw terminals for easy connection
Fits standard 35mm DIN rail
Includes LED Status indicator

Sensata | Crydom Solid-State Interface Relay, 5A Current Rating, 3 to 15V DC Control Voltage Range - DRA1-CX Series - DRA1-CX240D5

Reliably control the power supply to low-voltage equipment using this solid-state interface relay from Sensata | Crydom. Thanks to its current rating of 5A, it's a good choice for use in low-power applications. It has an LED status indicator for quick and convenient visual diagnostics. The unit has no moving parts, so you benefit from minimal wear for long-lasting performance. For ease of installation, you can mount this device on a standard 35mm DIN rail. An interface relay like this one is a good choice for motion control and lighting applications.

• Screw terminals for simple and secure wiring
• Broad operating temperature range between -30°C and +80°C for use in harsh conditions
• Thermally conductive epoxy encapsulation for resistance to heat and impact
• Light weight of 28.6g to place minimal strain on your equipment

How big is this relay?

This relay has compact dimensions of 89.6 (L) x 10 (W) x 61mm (H), allowing you to maximise packing efficiency on your DIN rail.

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

Datasheet

Declaration of Conformity 2014/35/EU

Line Drawing - DRA1-CX240D5
