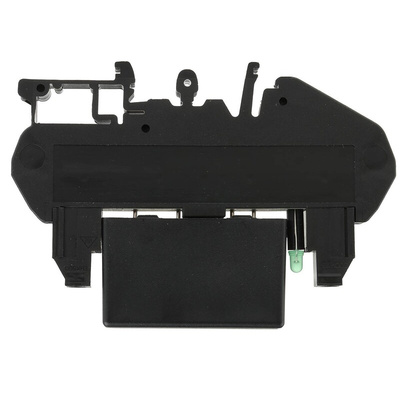

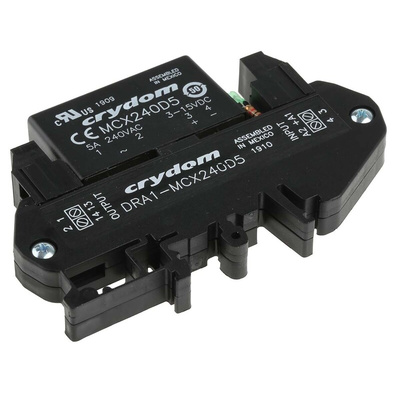

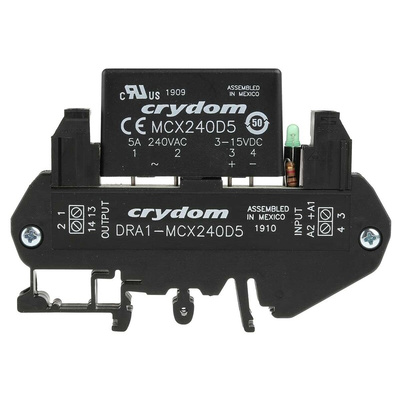

DRA1-MCX240D5, Sensata / Crydom DRA1-MCX Series Solid State Interface Relay, 15 V dc Control, 5 A rms Load, DIN Rail Mount, Реле

Sensata | Crydom Solid-State Interface Relay, 0.06 to 5A Load Current Range, 12 to 280V AC Operating Voltage Range - DRA1-MCX Series - DRA1-MCX240D5

Switch things up with this solid-state interface relay from Sensata | Crydom. You can use it to flip electrical loads on and off for close control over your operations. LED indicators mean it couldn't be easier to determine the device's operating status. A wide operating temperature range of -30°C to +80°C makes it suitable for use in demanding environments. Thanks to its compact size of 89.6 (L) x 10 (W) x 62.2mm (H), this pocket-sized powerhouse is a space-saving solution for your workplace.

Features & Benefits

• Cage-style screw terminals for a simple and secure connection
• DIN rail mounting makes setup a cinch
• Zero-cross switching for minimal noise during start-up
• Operating voltage range of 12 to 280V AC for use in low-power applications
• Turn-on and turn-off time of half a cycle for quick switching

What's the load current range of this SSR?

This SSR has a wide load current range of 0.06 to 5A, so it can easily handle a wide range of low-current applications.

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

DRA1 MCX Series Din Rail Mount Data Sheet

Dra_ Drs series relays and Sockets Brochure

Declaration of Conformity 2014/35/EU
